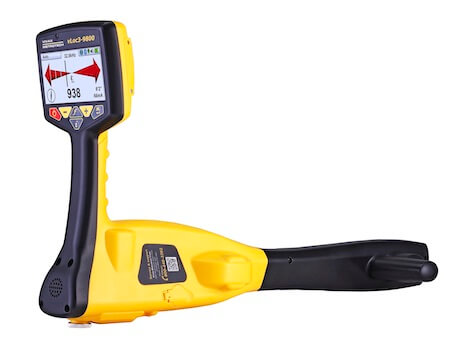

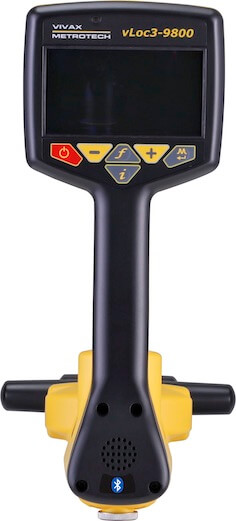

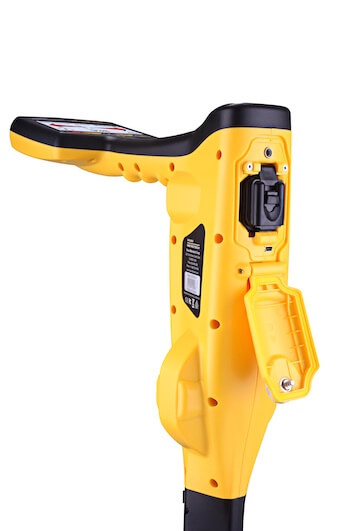

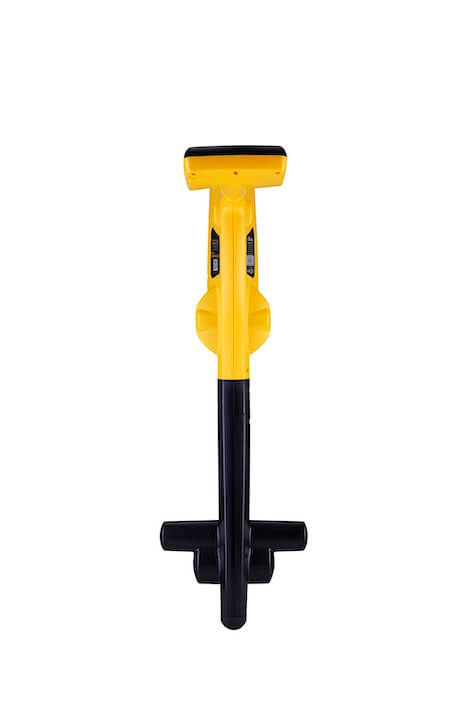

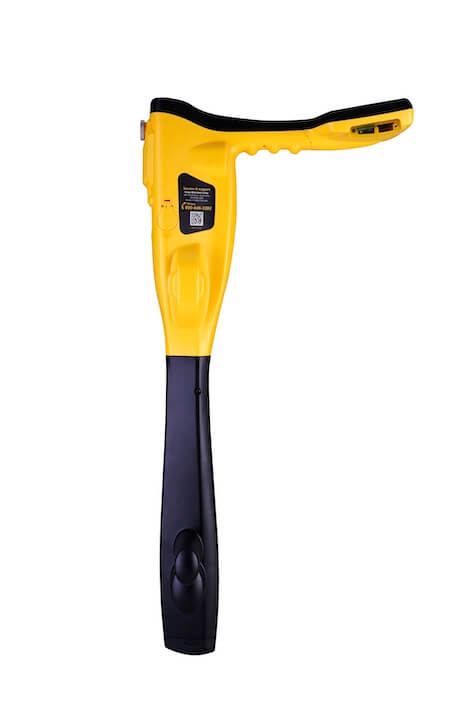

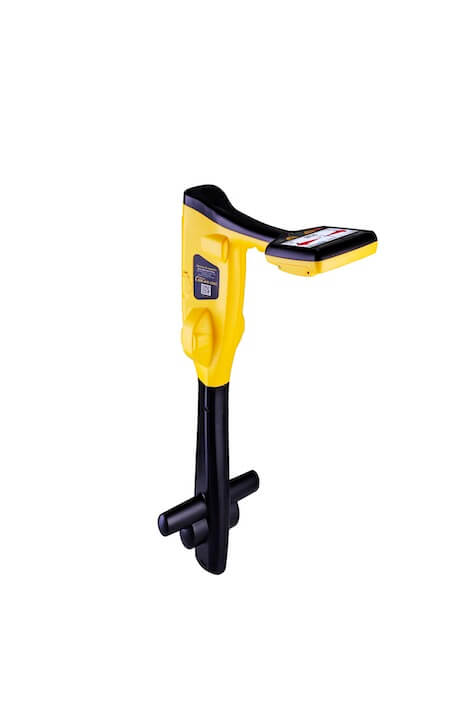

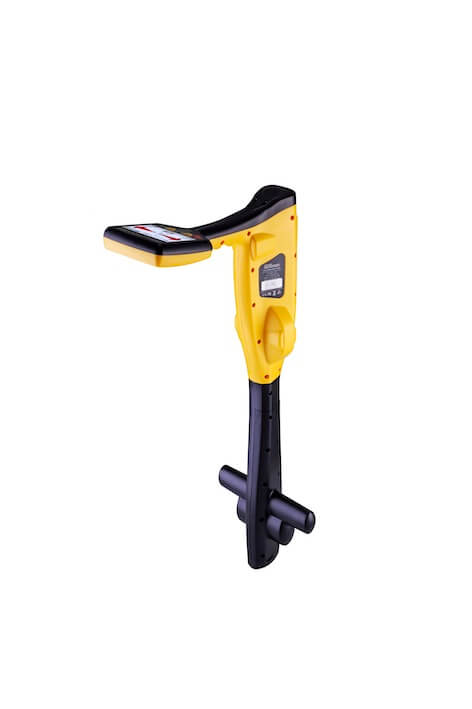

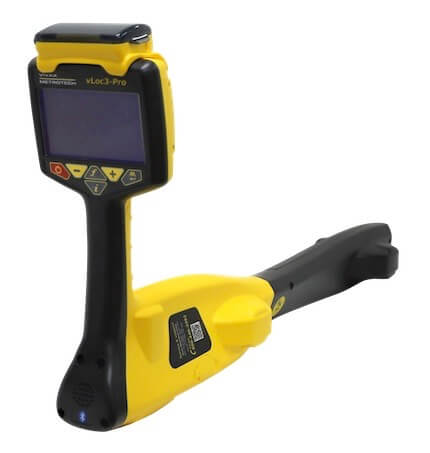

Vivax-Metrotech vLoc3-9800 Utility Locator

The vLoc3-9800 from Vivax-Metrotech is a fully automatic gain control, precision left/right guidance utility locator. The vLoc3-9800 offers passive modes and all available frequencies between 16Hz up to 200kHz. Audio and mechanical vibration alerts are configurable by users providing warnings for shallow depth, overload, overhead cables, and excessive swinging. Accessories include the optional Bluetooth module for GPS mapping and MLA (marker locator adapter) add-on for locating buried EM markers and TX Link for communications between receiver and transmitter.

Need to locate marker balls? Every vLoc3 locator can find EM markers using an optional Marker Locate Adapter (MLA).

There are hidden images / Tidy mode active.

Standard Features

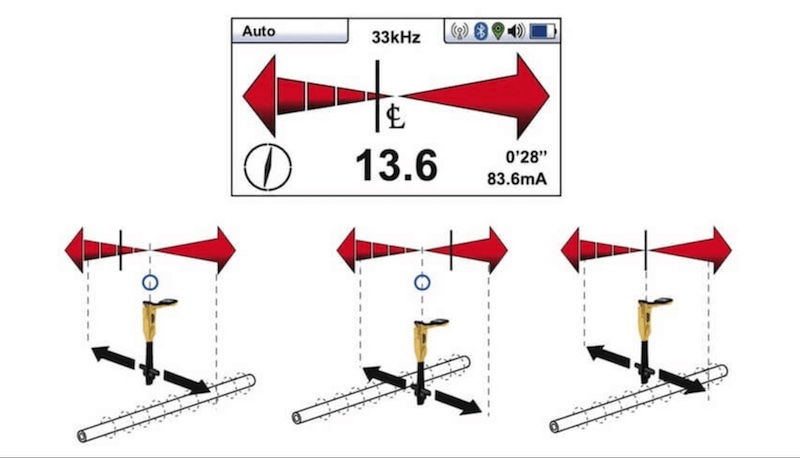

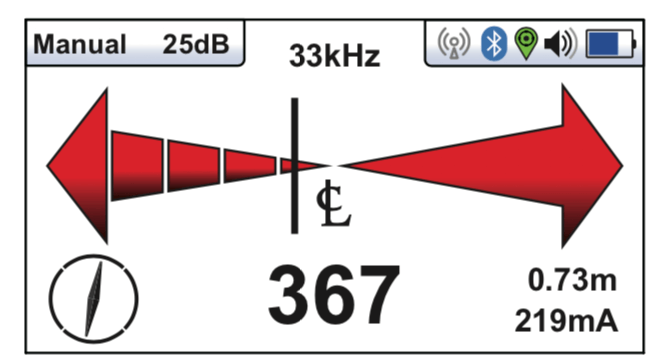

Patented Distance Sensitive Left/Right antenna array

Built-in accelerometer and gyroscope providing continuous correction of depth

Light sensor automatically controls display backlight for longer battery life

Vibration motor in handle provides user feedback during alerts & warnings

On-board Calibration / Self-Test (eliminates cal timer and PC plug-in and its associated costs)

Rugged high impact thermoplastic ABS construction for strength and light weight design

Weighs only 4.4 lbs. (2 kg)

Alkaline (typically 12-hours intermittent use)

Li-Ion Rechargeable Battery (typically 27-hours intermittent use) (both Alkaline & Li-Ion are standard)

Mini USB socket for data transfer/software updates

Bluetooth enabled using optional "Plug-and-Play" Bluetooth module

GPS ready (easy push-button mapping) w/external GPS receiver or VMMAP

VMMAP App for mapping utilities (FREE for iOS & Android download)

Built-In locate data logging (stores 50 Million records) - depth, current, frequency, mode, gain setting, signal strength, GPS coordinate, date and time (if Bluetooth active)

Ultra Fast Multi-Core processor engine for fast, reliable, and accurate results

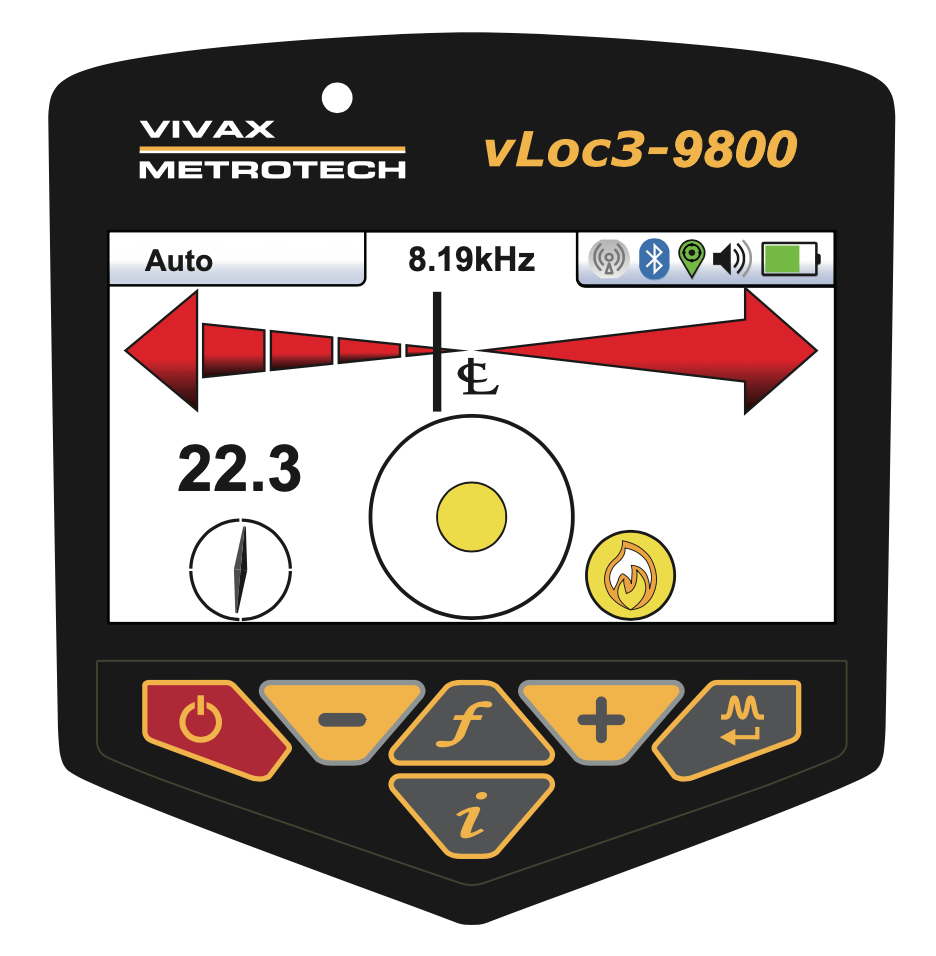

4.3" Color backlit high visibility display provides a best in class user experience, night or day

Very simple intuitive menu configuration for easy customized set-up

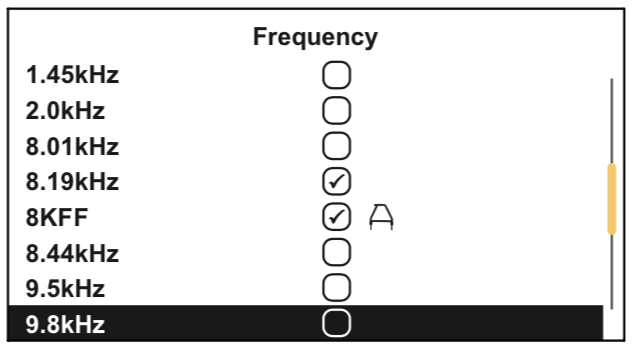

Frequencies: configurable from 16Hz up to 200kHz

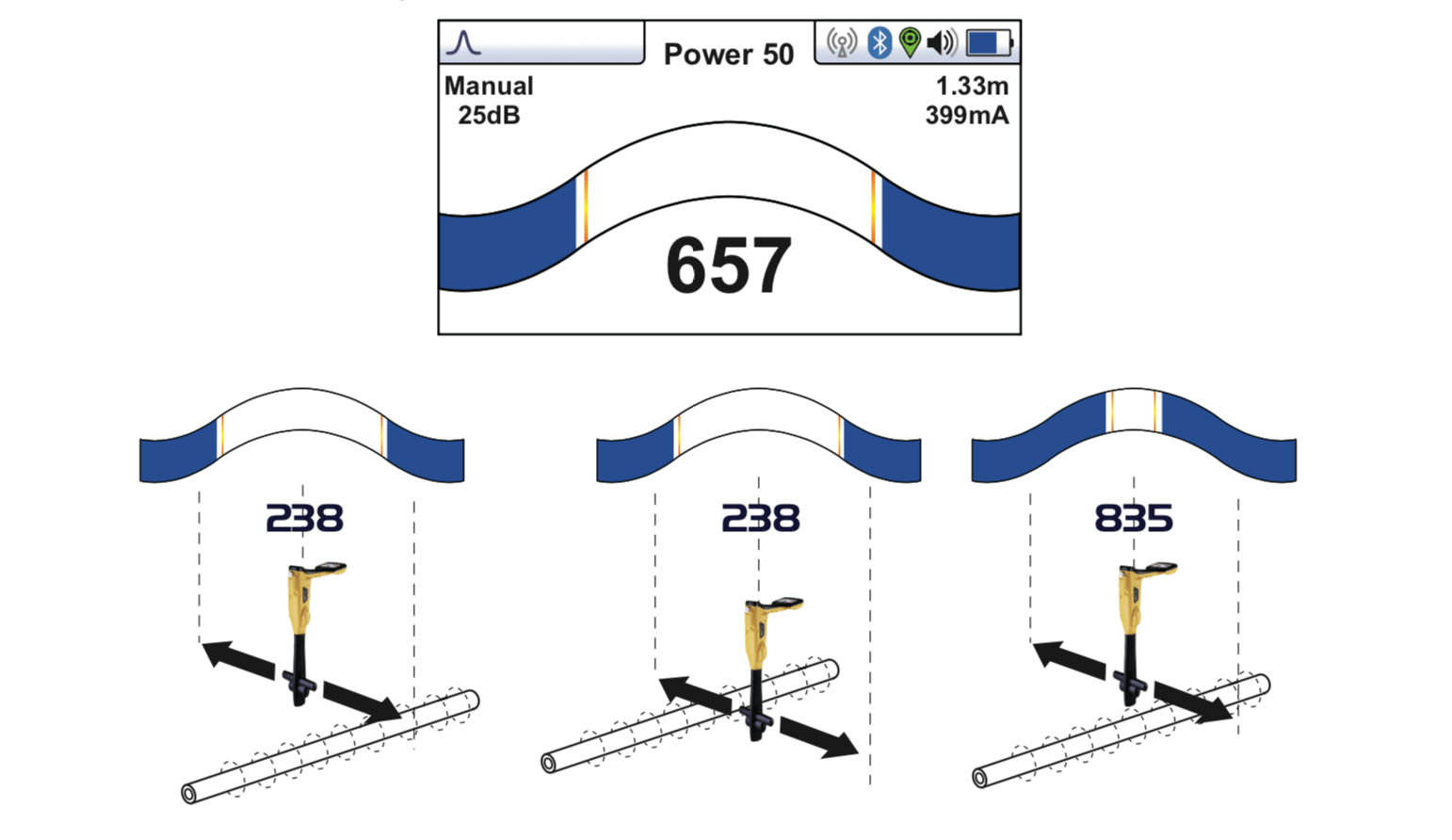

Passive Power and Radio modes for utility sweeping.

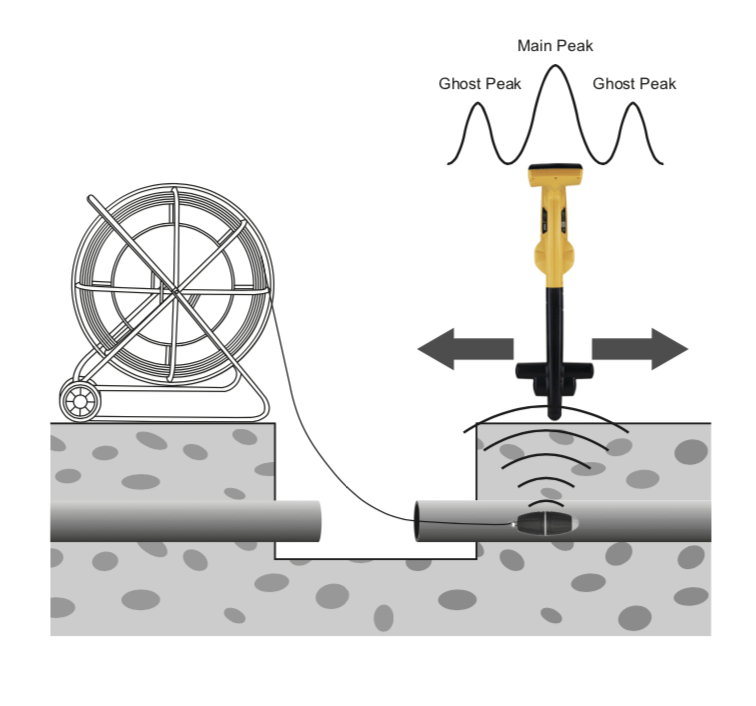

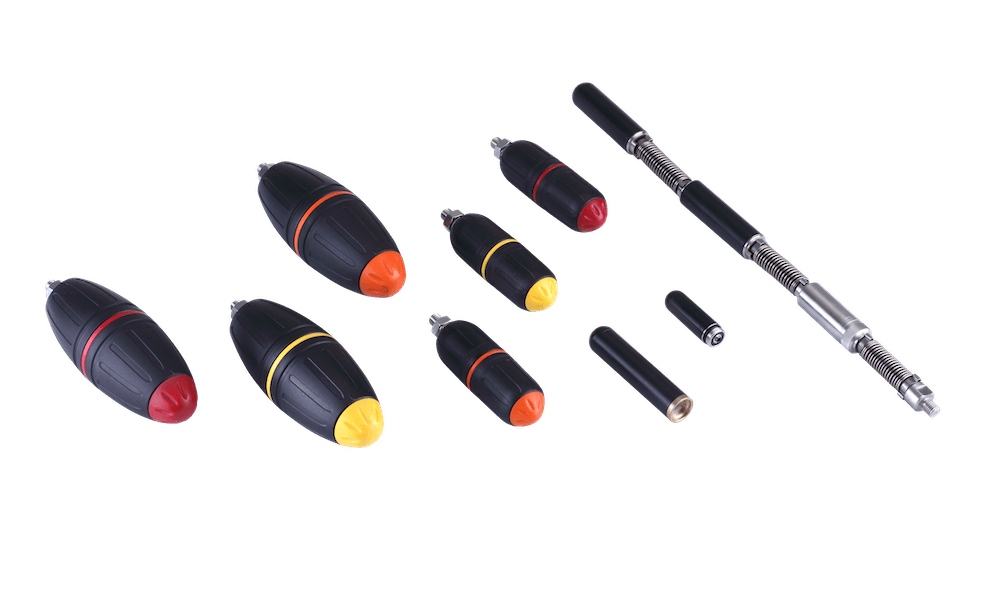

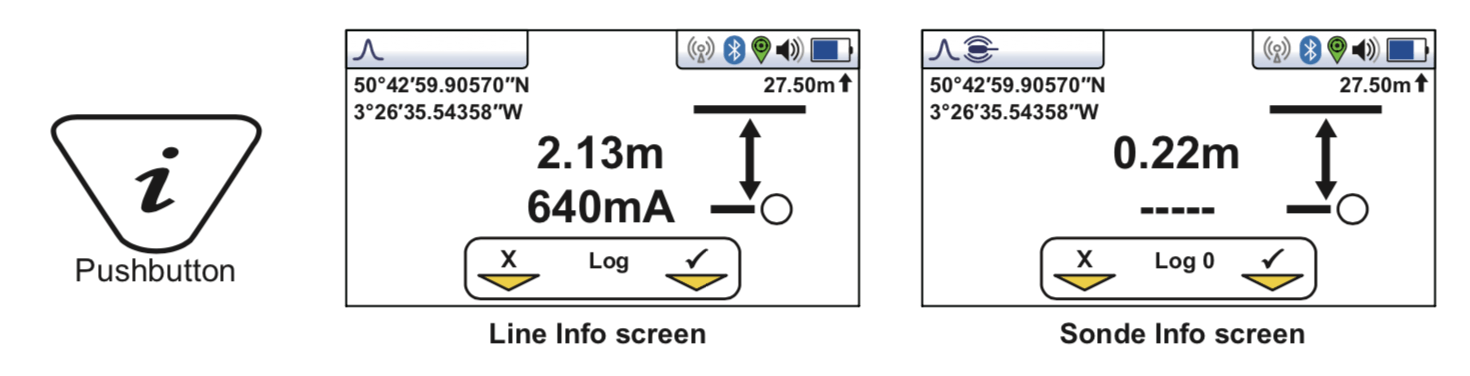

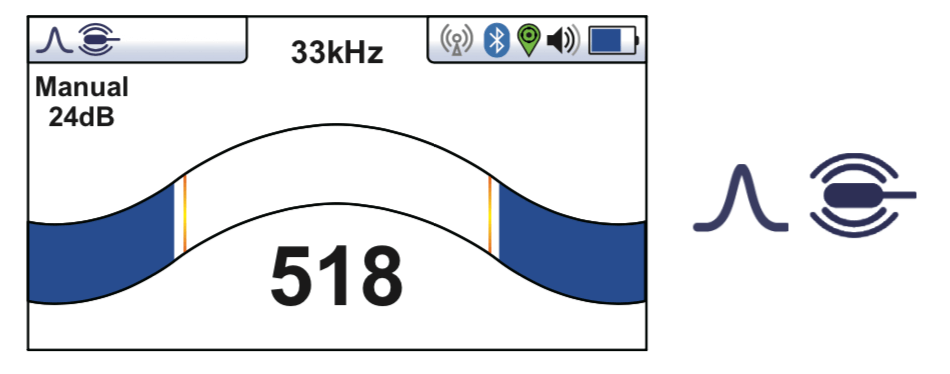

Sonde mode (512Hz/640Hz/8kHz/33kHz)

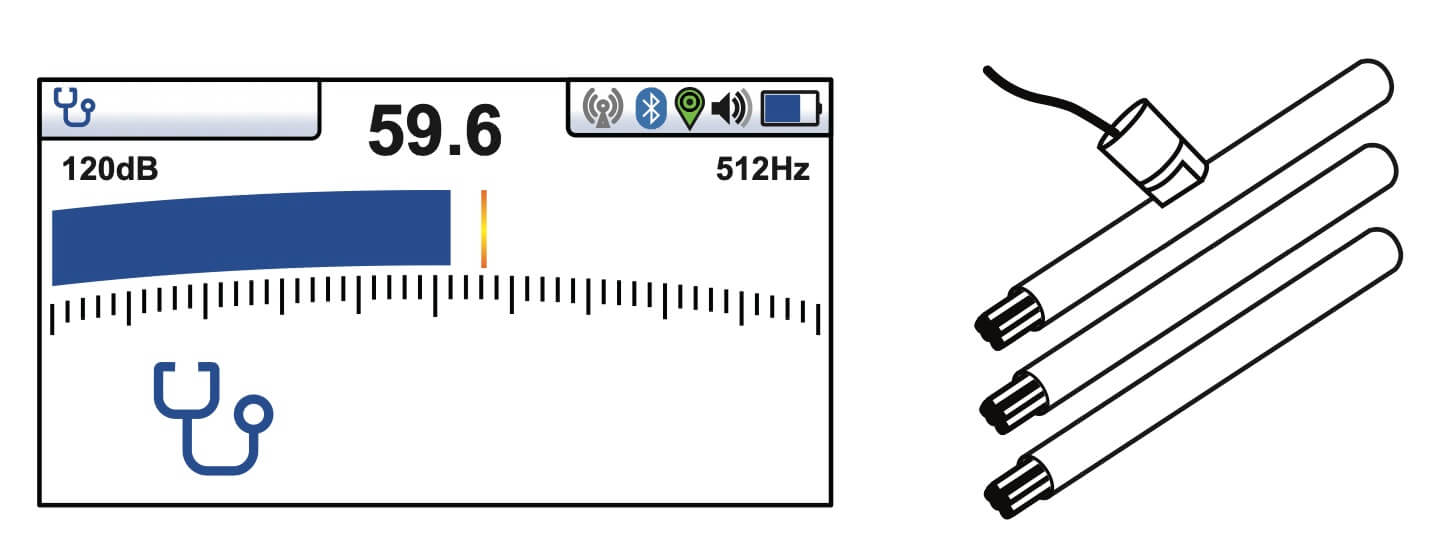

Line Orientation Compass (360 degrees)

TX LINK mode (requires optional factory order)

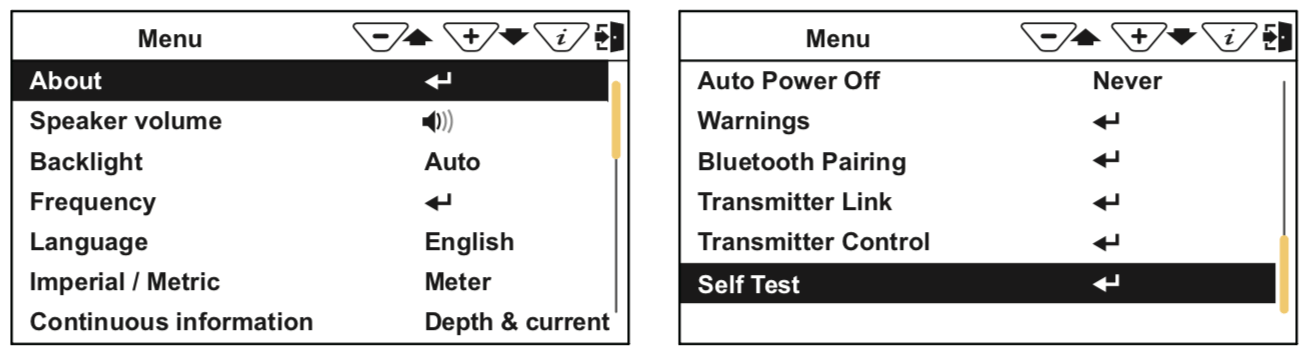

Calibration Verification / Self Test
No more "Cal" timer or cost associated with reseting a timer. This built-in Calibration Verification Self-Test is both complex and comprehensive and new to the industry. This feature virtually obsoletes the need to return or purchase a plug-in-to-paper validation certificate.

Features:

High integrity self test that assures the sensors are operating within factory tolerances.
Result measurements are compared to initial factory calibration tolerances.
Passing the self-test assures that the locator is within factory calibrated performance criteria.
Self-test results are logged to an internal SD card.

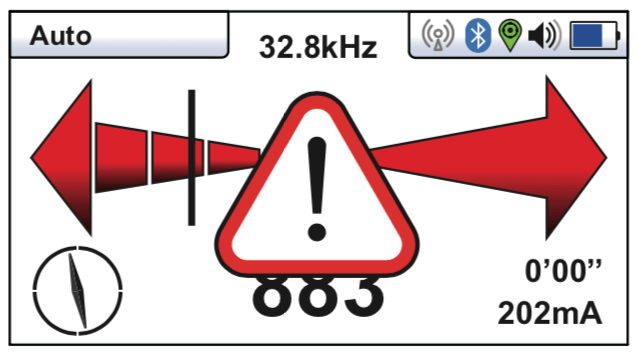

Warning / Alerts
Warnings and Alerts provide users with instant feedback when something is wrong. These events will cause the handle to vibrate as well as display a visual notification indicating type of alert. All events are logged onto an internal SD card for future reference.

Shallow Depth Warning
This warning occurs when the utility detected is less than (6) six inches deep. This can prevent damage from occurring to the utility and provide user safety.

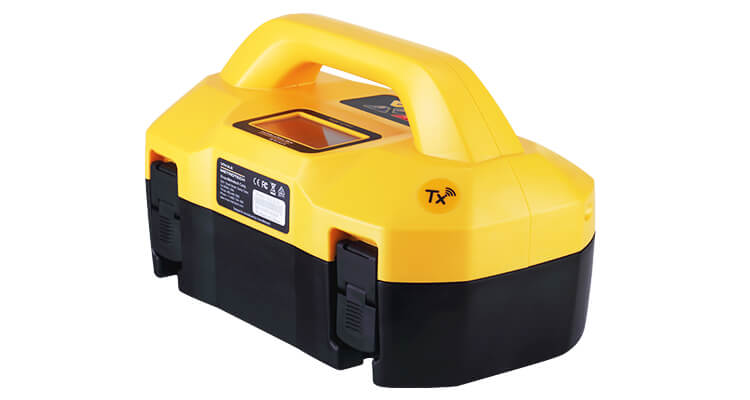

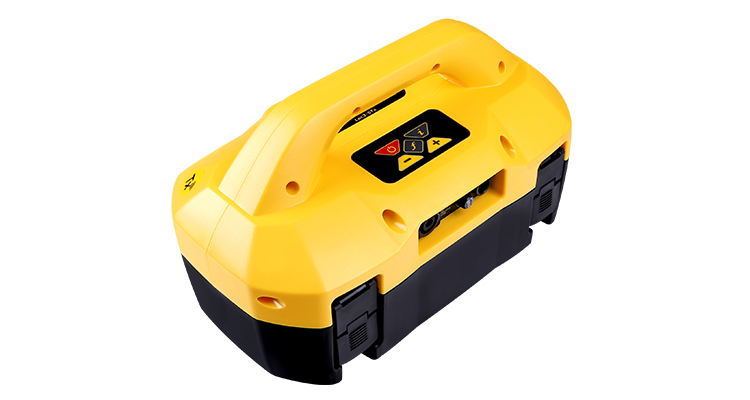

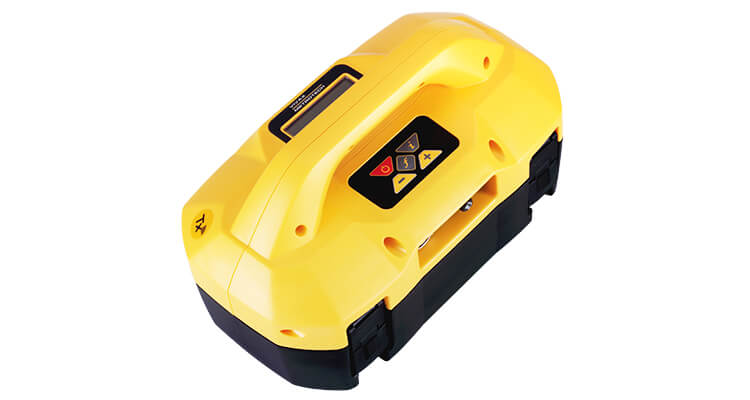

5 - Watt (Loc3 Series)

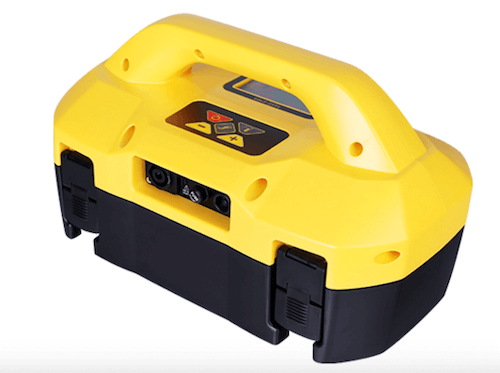

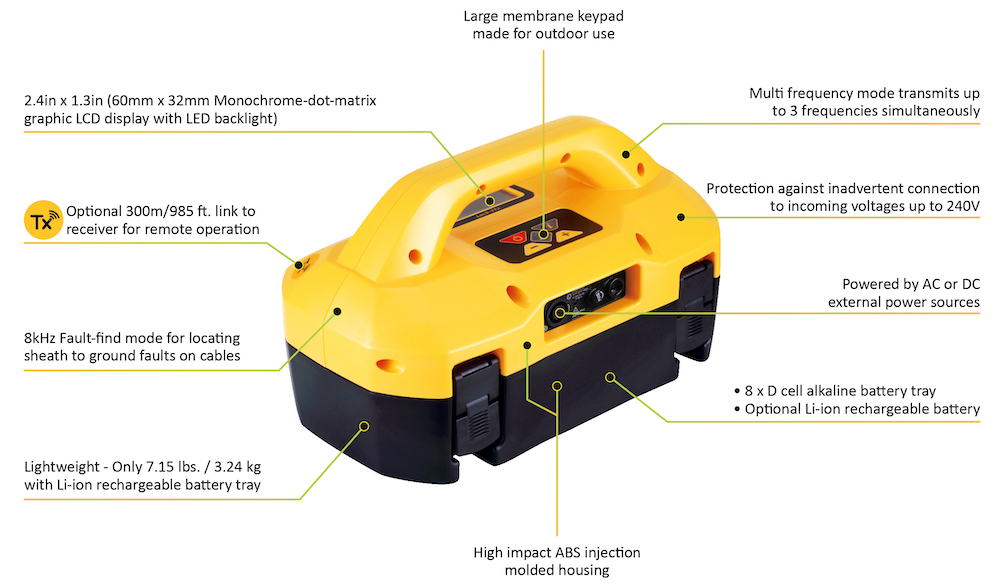

The Loc3-5Tx broadband transmitter offers all frequencies between 98Hz to 200kHz, SD mode (Signal Direction), (8KFF) fault-find and an accurate resistance measurement up to 1M Ohm. The ruggedized and lightweight ergonomic design provides direct connection, signal clamp or induction mode and is protected against incoming voltages up to 240V. The LCD display with LED backlight displays output current, connection type, volts, resistance, frequency, volume, battery condition and high voltage warning.

If equipped with optional TX LINK, the transmitter can be remotely controlled by the vLoc3 series receiver. The range is typically 985 ft. (300m).

Output Current	0.3 Amp (RMS constant current)
Max. Output Voltage	50V RMS
Power Output	5-Watt (< 45kHz) 1-Watt (> 45kHz)
Output Channel	One (1) output
Voltage Protection	Up to 240 VAC (external fuse)
Batteries	(8) Alkaline D-cell or (Optional Li-Ion rechargeable)
Induction	8kHz to 200kHz (user selectable)
Inductive Clamp	8kHz to 200kHz (user selectable)
Direct Connection	98kHz to 200kHz (user selectable)
Multi-Frequency Mode	(3) Three frequencies (any combination)
Resistance Measurement (FFL)	0 - 1M Ohms

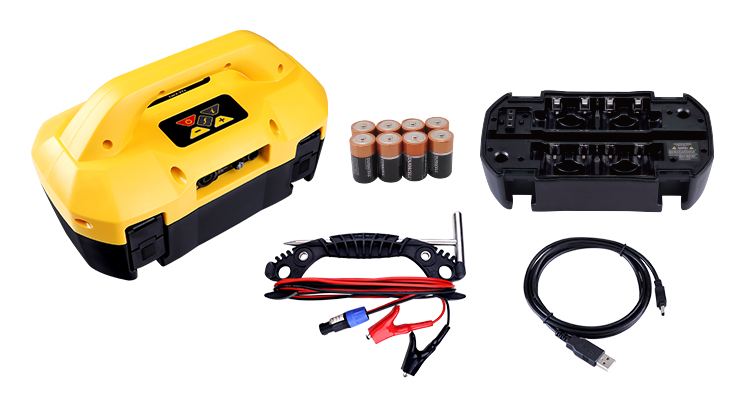

Included:	Loc3-5Tx transmitter, Conductive attachment leads (12') & ground stake

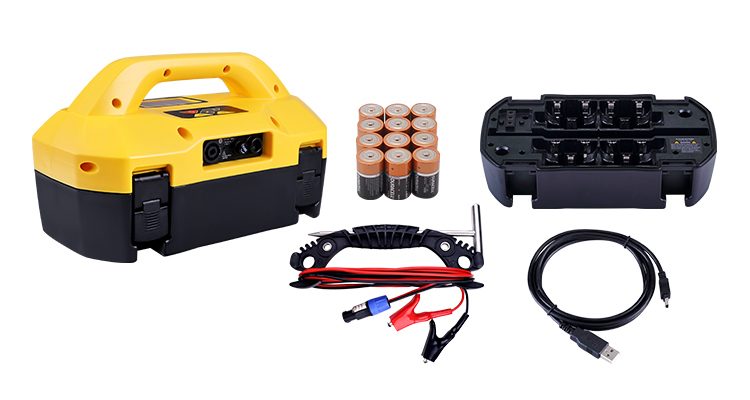

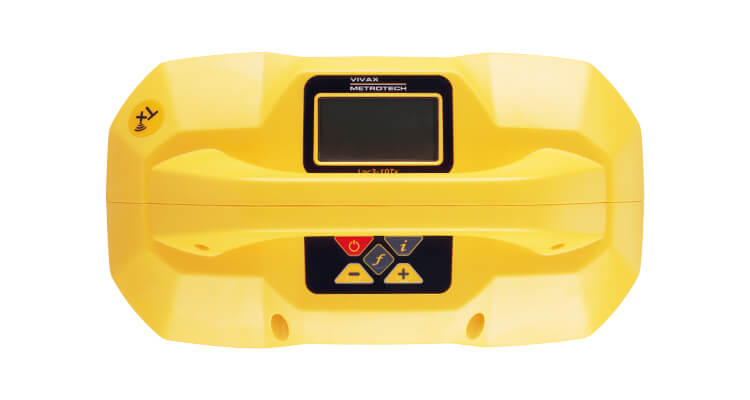

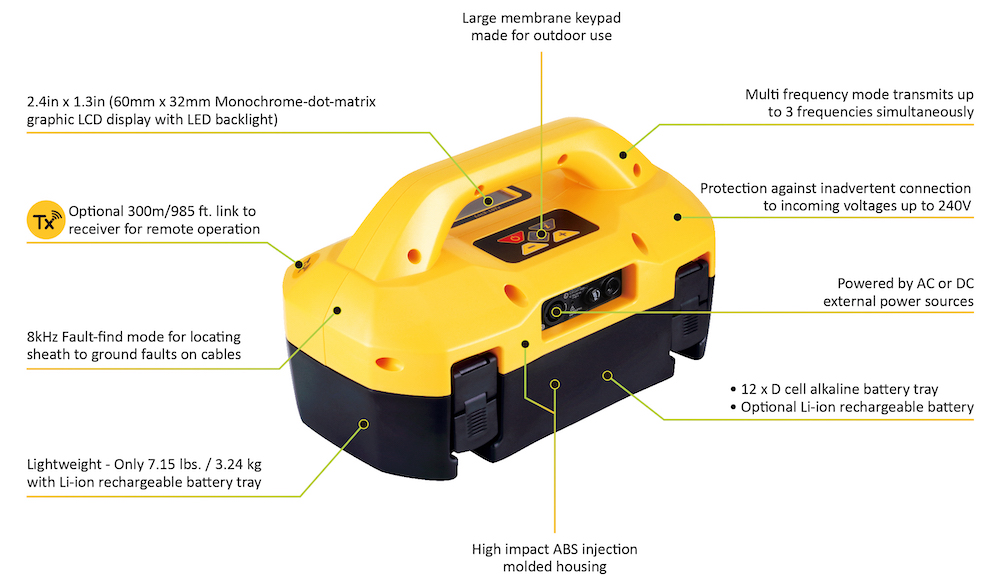

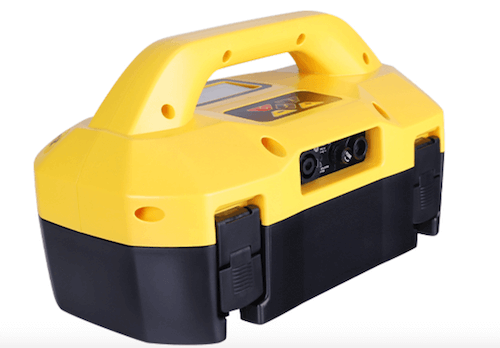

10 - Watt (Loc3 Series)

The Loc3-10Tx broadband high power transmitter is the industry benchmark for 10 watt transmitters. The Loc3-10Tx offers high output current (up to 1,000mA RMS constant), making it perfect for long distance and deep pipe & cable locating. This transmitter offers all frequencies between 98Hz to 200kHz, SD mode (Signal Direction), (8KFF) fault-find and an accurate resistance measurement up to 1M Ohm. The ruggedized and lightweight ergonomic design provides direct connection, signal clamp or induction mode and is protected against incoming voltages up to 240V. The LCD display with LED backlight displays output current, connection type, volts, resistance, frequency, volume, battery condition and high voltage warning.

If equipped with optional TX LINK, the transmitter can be remotely controlled by the vLoc3 series receiver. The range is typically 985 ft. (300m).

Output Current	1.0 Amp (RMS constant current)
Max. Output Voltage	50V RMS
Power Output	10-Watt (< 45kHz) 1-Watt (> 45kHz)
Output Channel	One (1) output
Voltage Protection	Up to 240 VAC (external fuse)
Batteries	(12) Alkaline D-cell or (Optional Li-Ion rechargeable)
Induction	8kHz to 200kHz (user selectable)
Inductive Clamp	8kHz to 200kHz (user selectable)
Direct Connection	98kHz to 200kHz (user selectable)
Multi-Frequency Mode	(3) Three frequencies (any combination)
Resistance Measurement (FFL)	0 - 1M Ohms
Included:	Loc3-10Tx transmitter, Conductive attachment leads (12') & ground stake

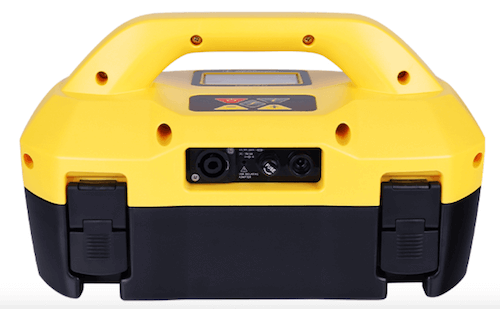

25 - Watt (Loc3 Series)

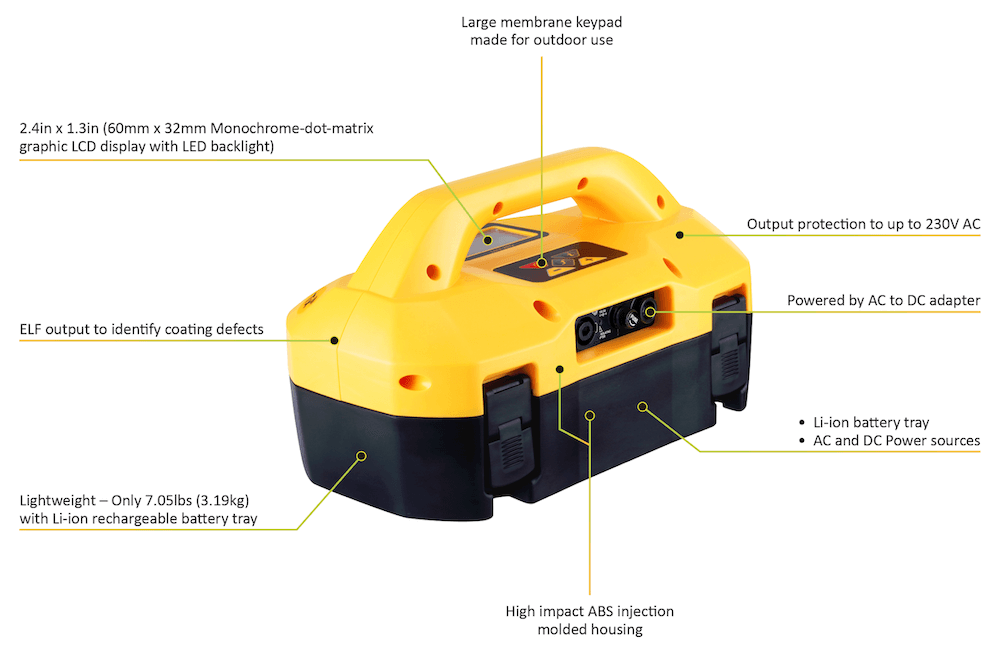

The powerful Loc3-25Tx transmitter is the go-to transmitter for problematic deep pipe & long distance pipe & cable locating. Also its perfect for finding holidays on coated pipelines. The smaller Loc3-25Tx is perfect for gas distribution applications.

In addition to the above applications the Loc3-25Tx features high current-single frequencies making this transmitter the best solution for extreme deep pipe applications.

The Loc3-25Tx is built on a rugged, ergonomic IP54 housing and is lightweight (only 7.05lbs). This transmitter provides consistent current output up to 4.0 Amps peak.

If equipped with optional TX LINK, the transmitter can be remotely controlled by the vLoc3 series receiver. The range is typically 985 ft. (300m).

Key Features of the Loc3-25Tx Transmitter

4.0 Amp peak current output
130 Volts peak output
Light and portable for everyday use
ELF and Low frequencies for minimum distortion
Includes all PCM & PDCM frequencies
Single frequencies for deep pipe locates
Signal clamp compatibility
Li-Ion rechargeable battery
Heavy duty AC charger can be used to power the transmitter while simultaneously charging battery.

Output Current	A maximum current output of 4.0 Amp RMS (up to 25 watts)
Output Voltage	130V RMS
Voltage Protection	Up to 230 VAC (external fuse)
Batteries	Li-Ion rechargeable battery (25-watt/2-hours) / (10-watt/6-hours)
Frequencies	20Hx to 9.82kHz (including all PCM & PDCM frequencies)
Included:	Loc3-25Tx transmitter, Conductive attachment leads (10'), Ground stake, Li-Ion battery tray, DC/AC Power supply for battery, Carry bag & Vehicle DC power supply

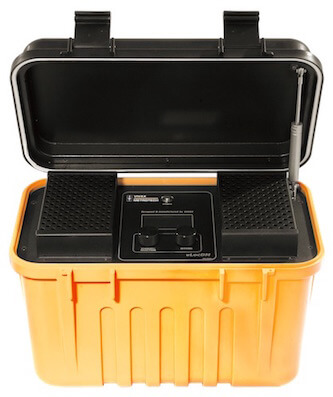

150 - Watt

The Loc-150Tx Transmitter is a high-powered unit which makes long range signal detection possible up to 20 miles (32km). The flexible power requirements enable it to utilize the variety of supplies available at most transformer rectifier stations. This allows the transmitter to provide its full 150W of output power over prolonged periods, without costly battery replacements. Hookup is a simple four wire connection procedure. The transmitter is compatible with both distribution and transmission networks.

Output Current	A maximum current output of 4.0 Amp RMS (up to 150 watts)
Output Voltage	120V RMS
Voltage Protection	Up to 250 VAC (external fuse)
Batteries	None (use 120VAC mains or 12-50VDC from rectifier)
Frequencies	512Hz and 8.19kHz
Included:	Loc-150Tx transmitter, Conductive attachment leads (10'), DC input lead (10') & Output mains plug (9')

The TX LINK is an optional feature and requires the transmitter radio link to be installed on both the Loc3 transmitter and vLoc3 receiver. TX LINK allows the transmitter to be remotely operated from the receiver. When linked, changing the frequency on the receiver will automatically change the frequency on the transmitter. The range of the radio link depends on having a clear "Line of sight" between the Receiver and Transmitter and is typically 984 ft (300m).

Using TX LINK with the vLoc3 series Rx is as easy as pressing the frequency key ("f") to change the frequency. For additional operations simply enter the "Transmitter Control" screen from the normal menu mode. This screen will display a visual of the transmitter display itself and allow user to increase or decrease power output (+ or -).

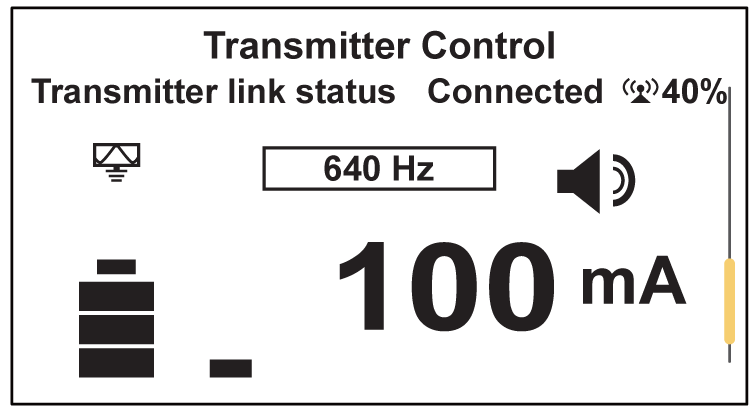

The Transmitter Control screen will display the following:
Radio link signal strength (40% as indicated).

Output mode icon (direct connection)
Output signal frequency (640Hz)
Output current (100mA)
Volume setting (level 2)
Transmitter battery level (Full)

Pressing the ("I") button will return to normal locating screen.

NOTE:
If TX LINK is not necessary, simply "Disabled" on both the transmitter and receiver to conserve battery.

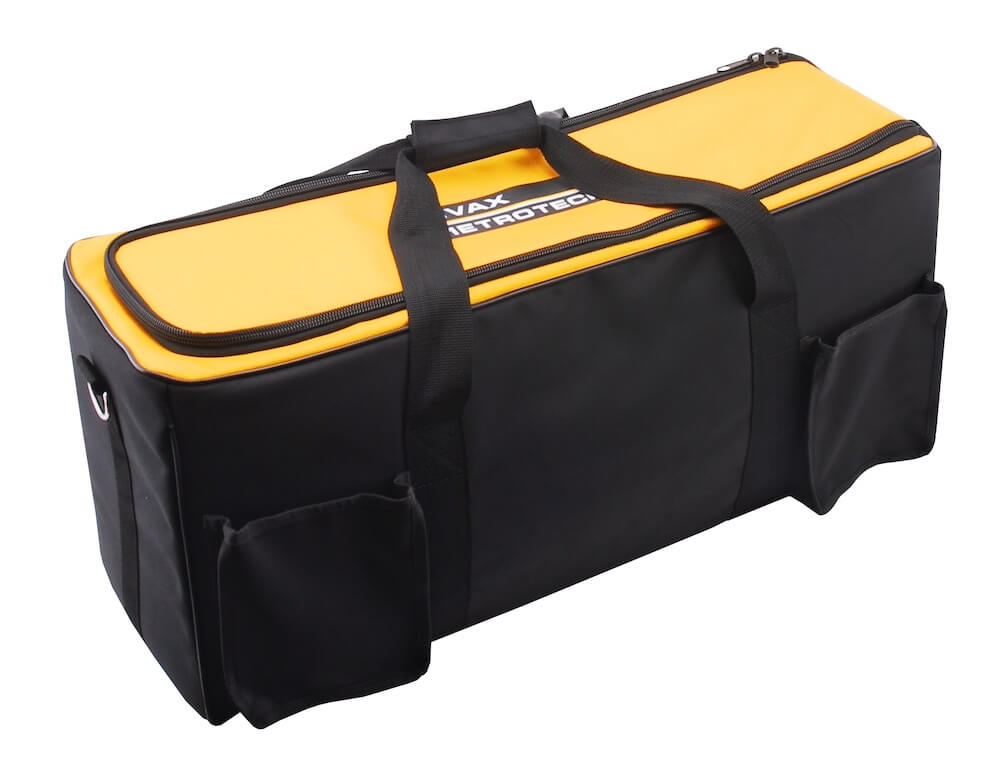

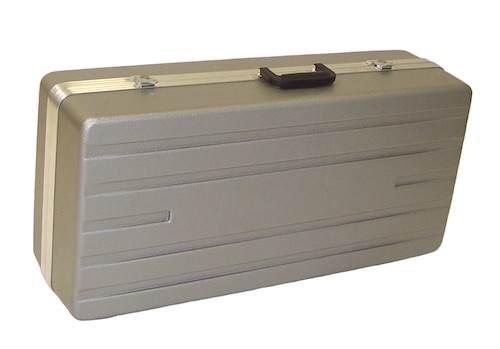

Loc3 - Series Carry Bag
(4.02.000098)

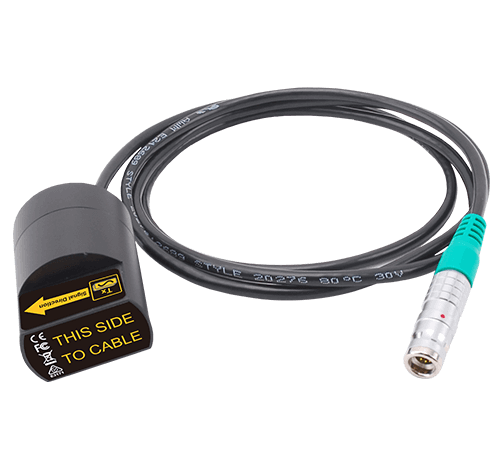

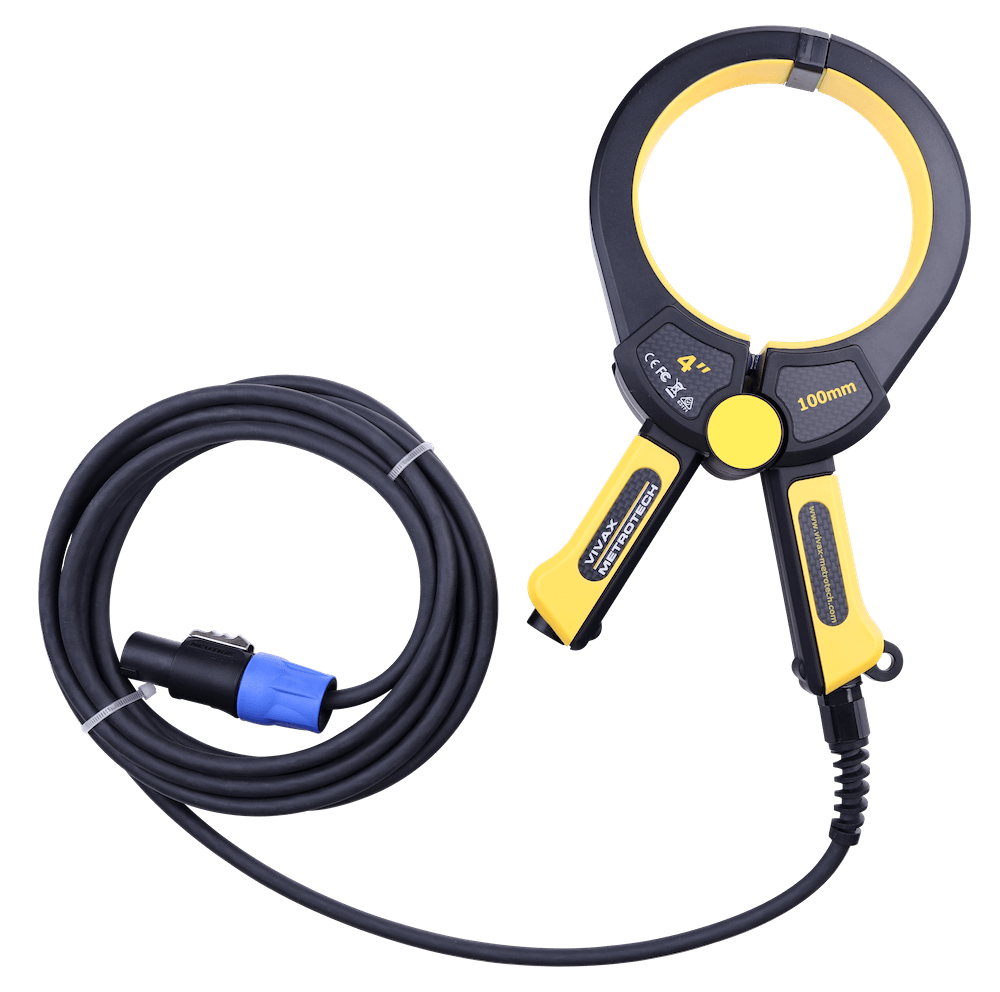

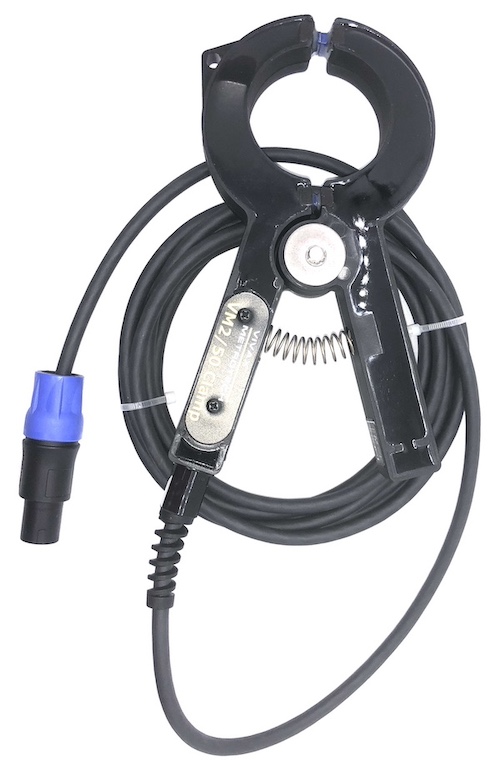

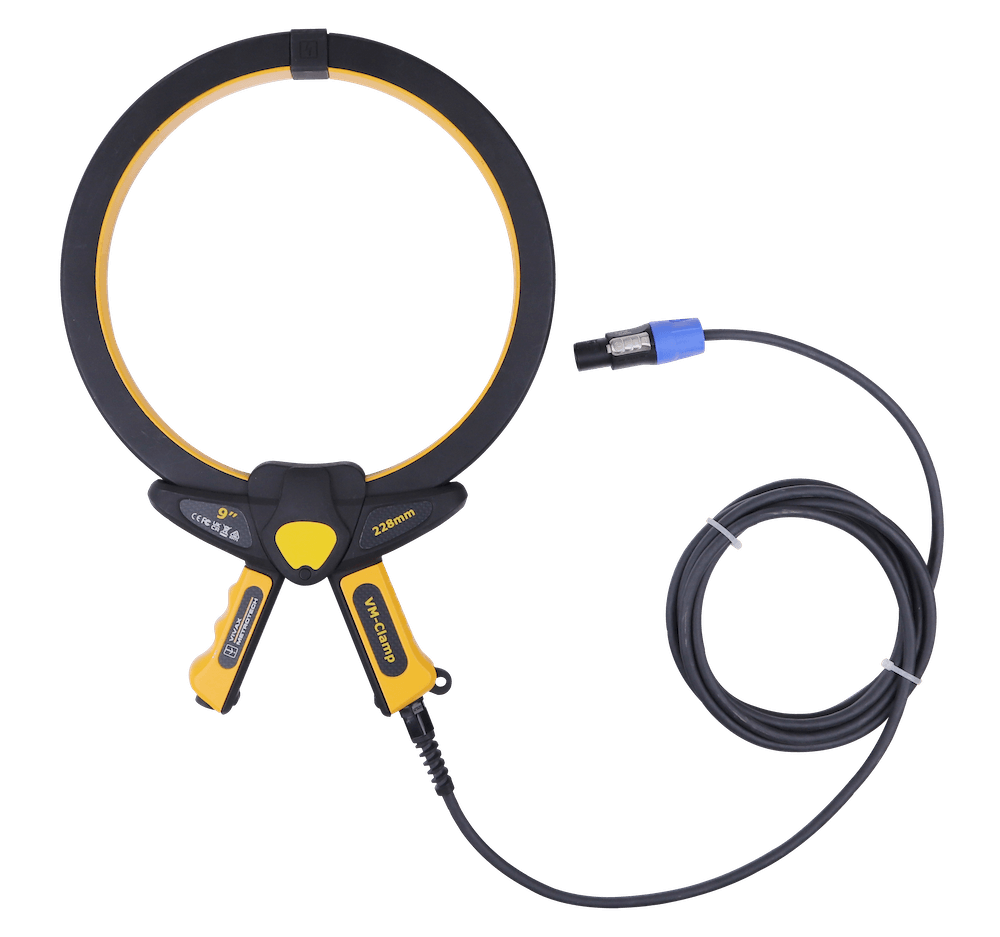

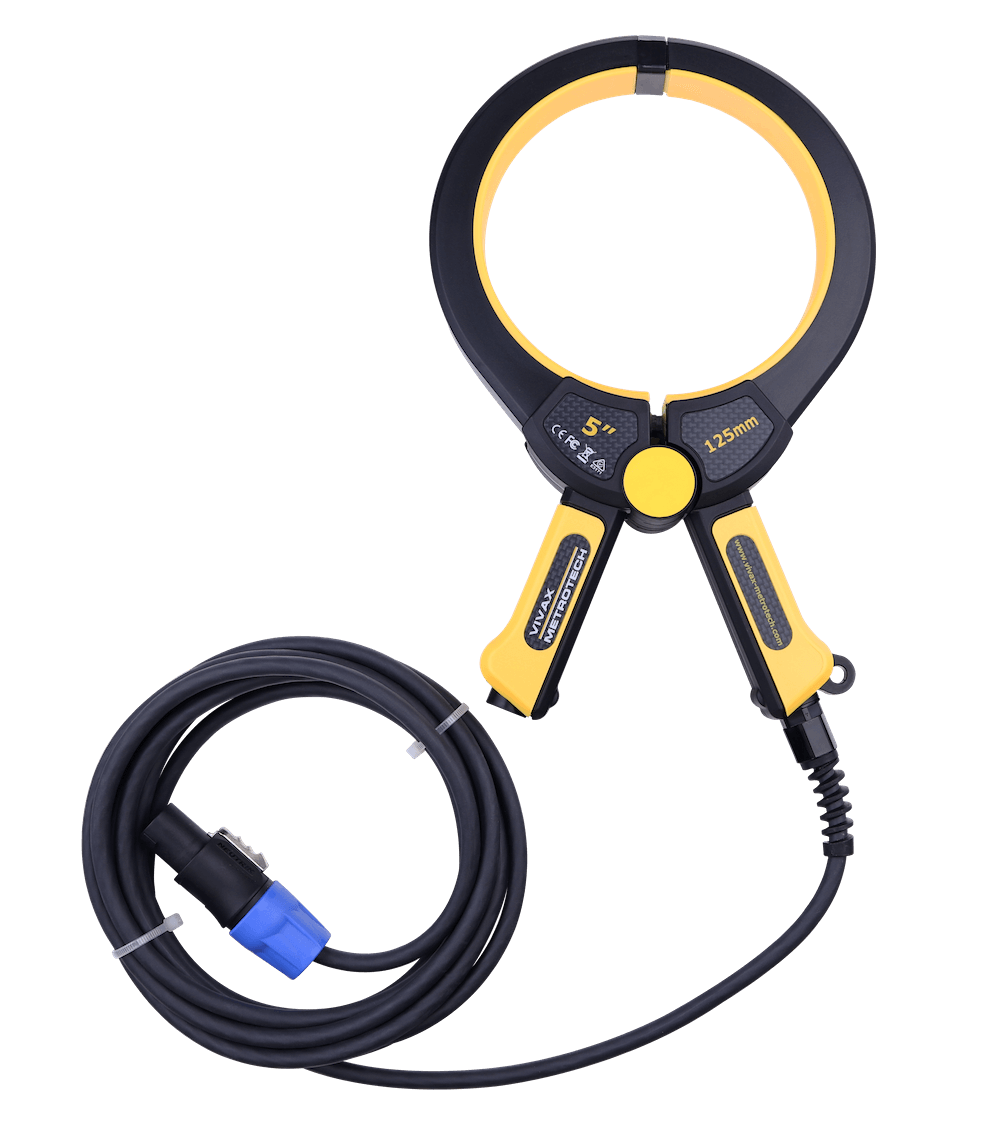

2" Signal Clamp
(1.200.03.00011)

The 2" clamp is used for smaller telephone cable applications, CATV, and fiber optic cables.

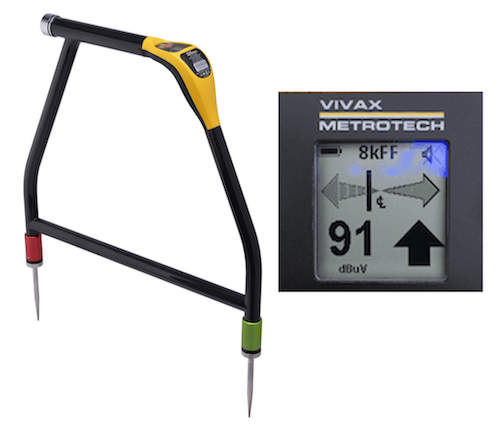

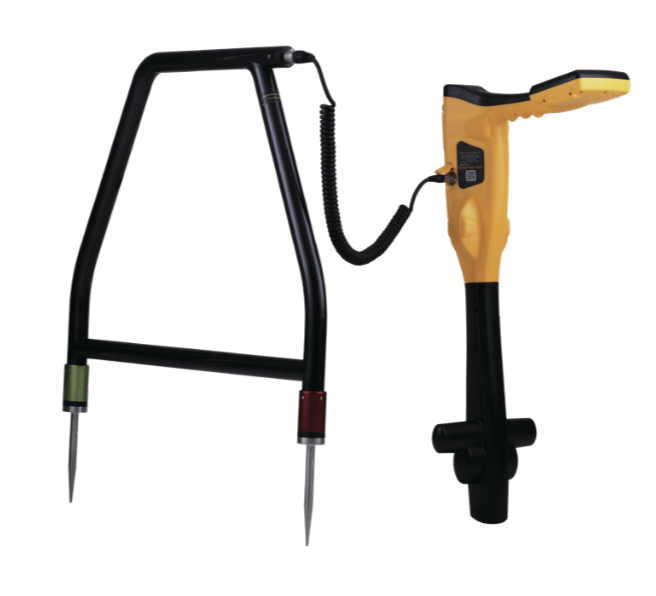

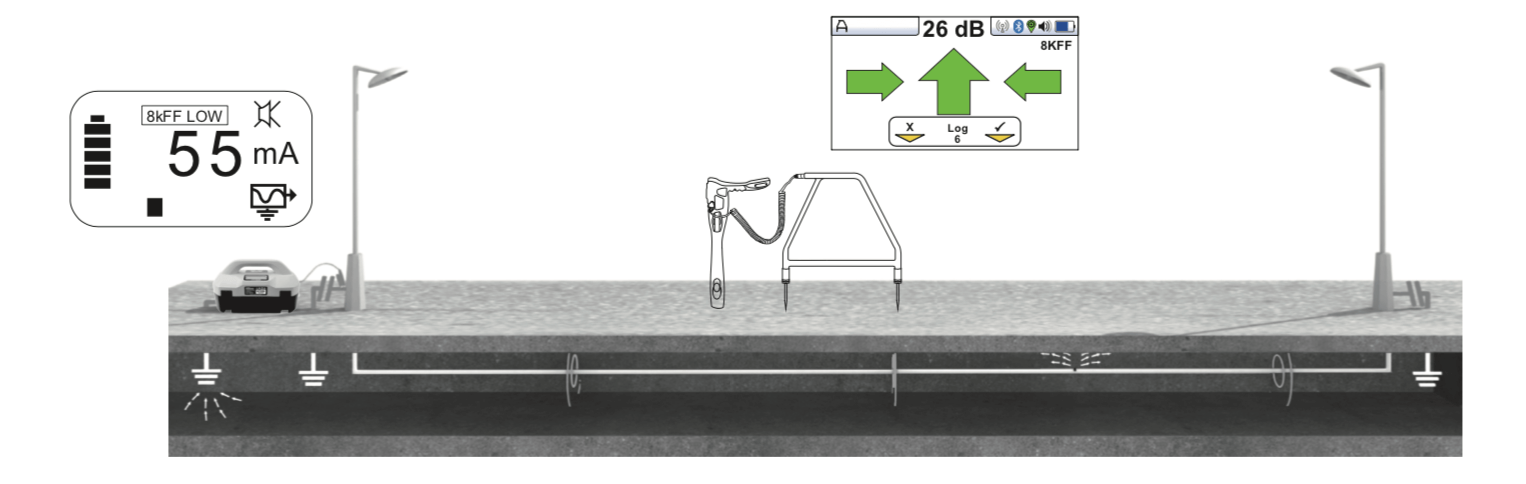

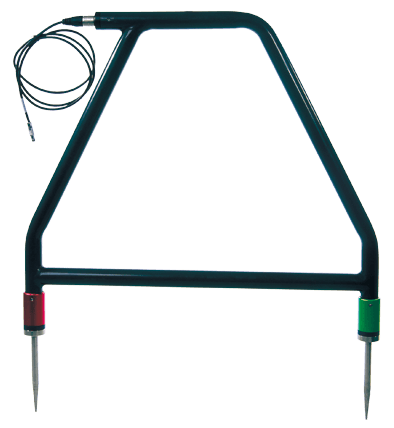

Accessory A-Frame
Stand-Alone A-Frame (wireless)

An A-Frame accessory provides a plug-n-play approach to simple and easy conductor fault locating. An essential tool for any power provider. Constructed of Light-Weight Carbon Fiber.

(1.219.04.00001)

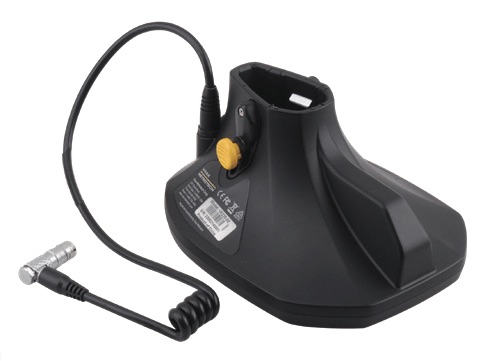

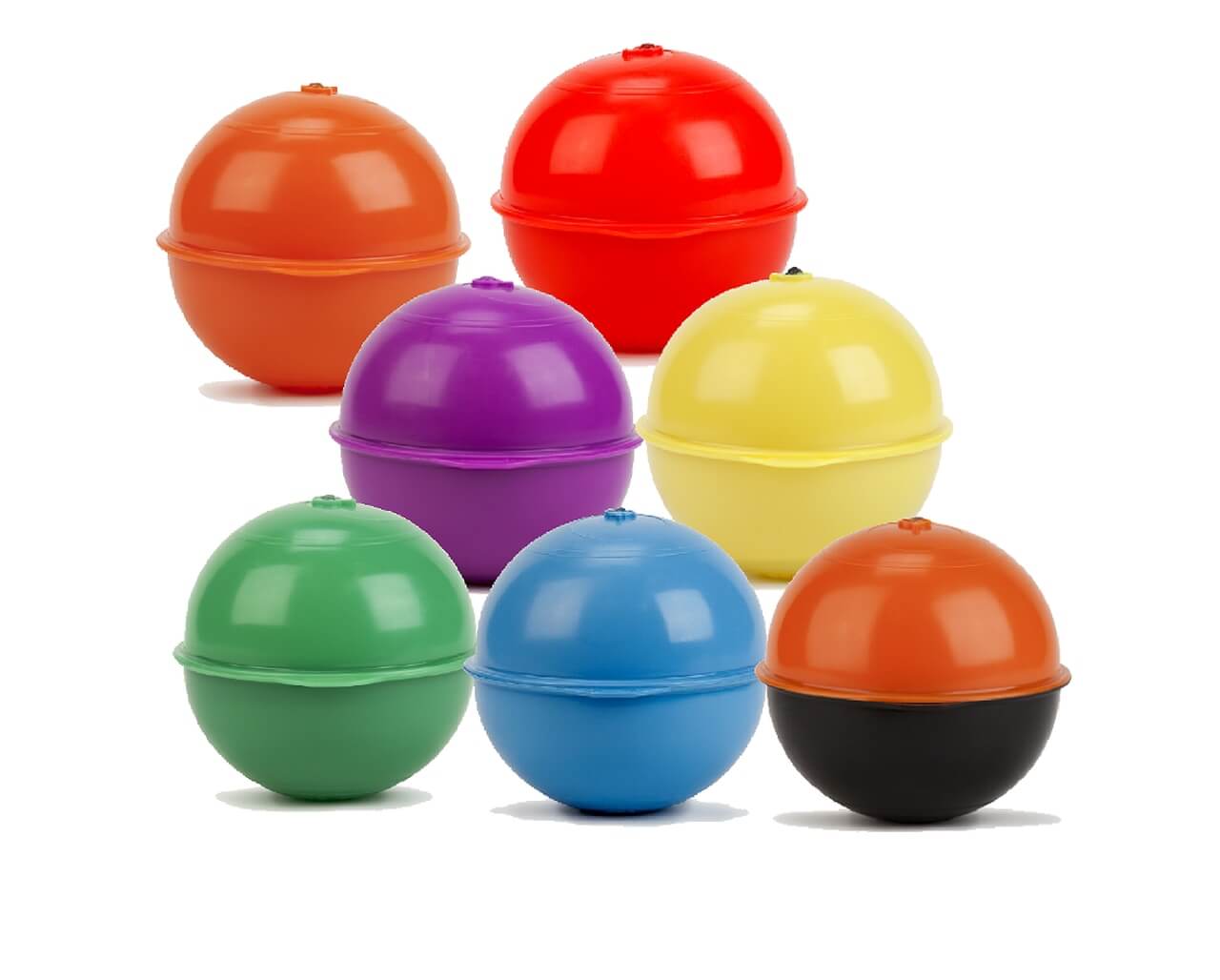

The Marker Locate Adapter (MLA) accessory is designed to plug-in-play and convert any vLoc3 series line locator into a EM marker locator. EM markers are commonly used to mark or indicate important underground or buried features of cable routes or pipelines, e.g., buried valves, buried splice cases, tees, end of lines, shut-off valves, or plastic features marked for future pipe detection. EM markers are color coded.

(1.219.03.00001)

Buy Now

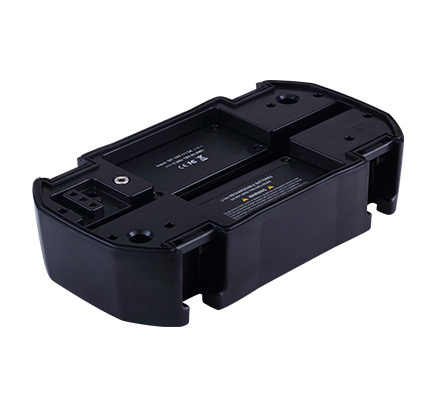

Using the Loc3 series Li-Ion Rechargeable battery pack saves money and helps keep the environment green. These battery packs can be recharged up to 500 times and can last the equivalent of two (2) regular Alkaline change-outs. Wall charger sold separately.

(2.219.02.00024)

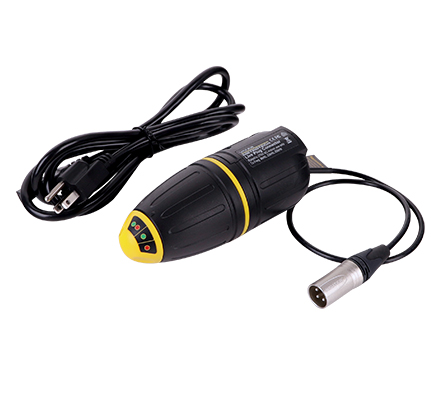

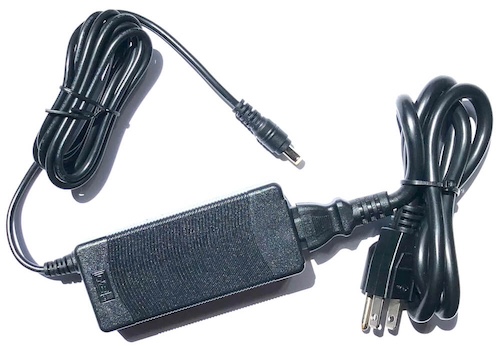

120VAC Wall Charger for charging Li-Ion battery packs.

(2.110.01.00020)

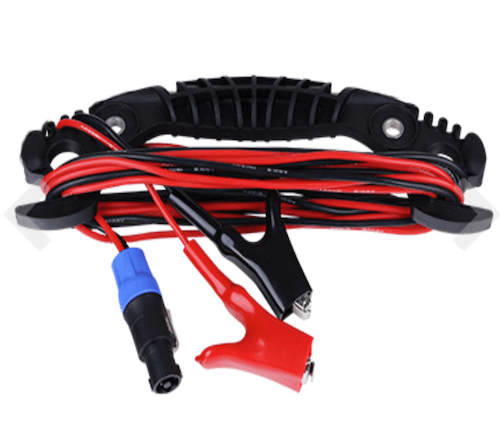

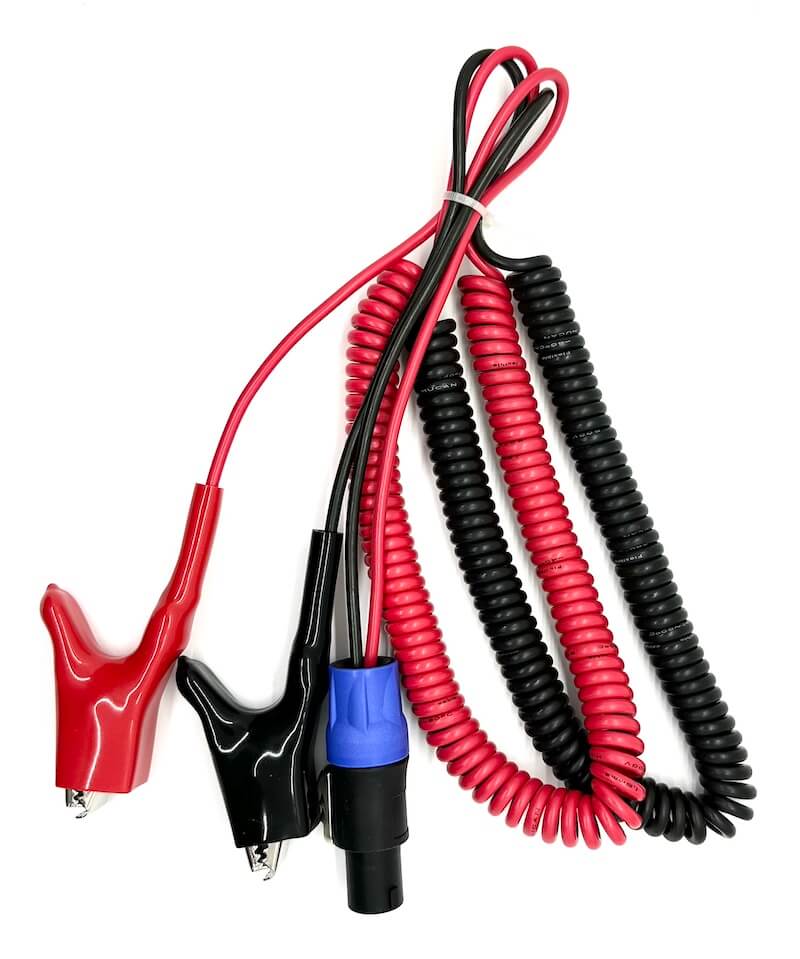

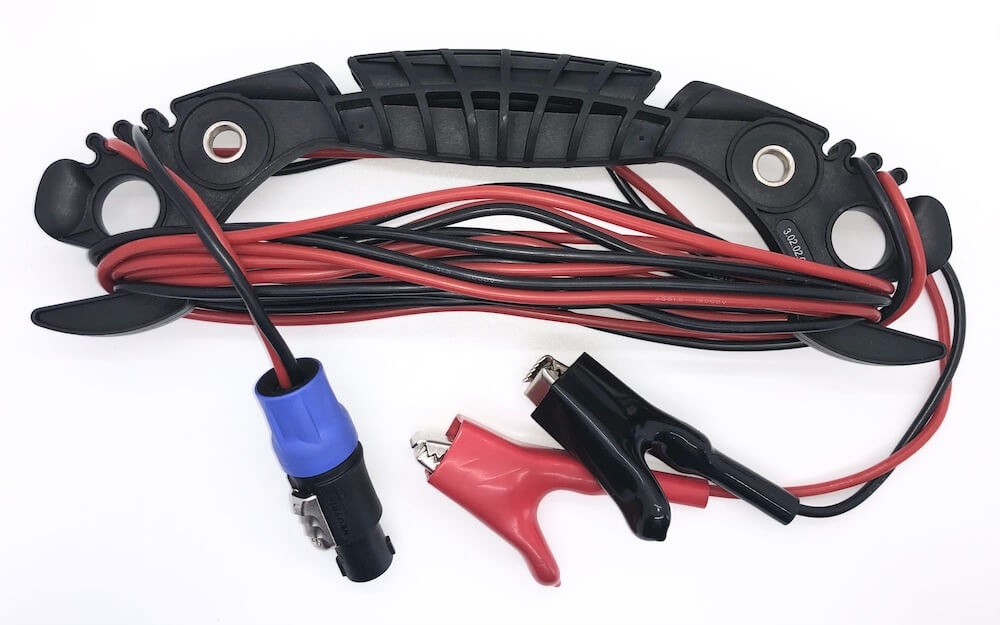

(2.222.02.00007 - Standard Clips (vLoc3 w/4P speakON connector) 2023+

Above part numbers include direct attachment leads and holder

(2.205.01.00018) - Standard Clips (vLoc)
(2.213.02.00013) - Large Clips (VM)
(2.205.01.00033) - Telephone Clips

All above part numbers include direct attachment leads and holder

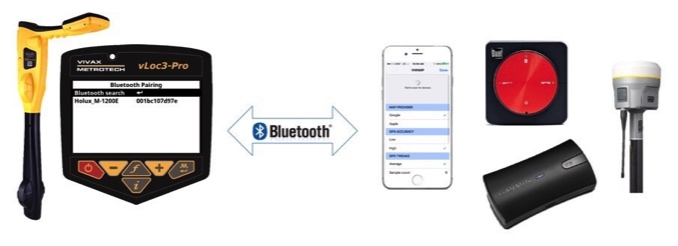

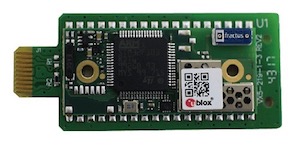

Bluetooth Module
(2.204.01.00044)

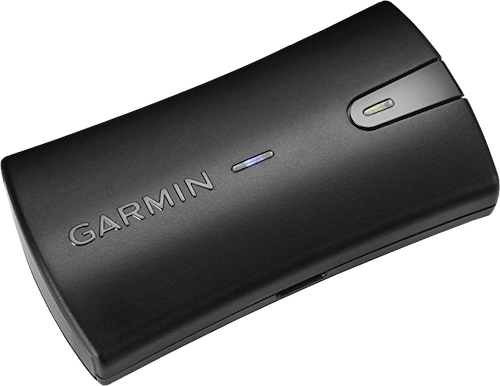

Garmin GLO™ GPS (3.01.19.000183)

The Garmin GLO™ can receive position information from both GPS/GLONASS satellite constellations, allowing up to 24 more satellites to be connected. This makes the Garmin GLO™ at least 20% faster and it updates 10x per second, i.e., 10x more often than other GPS receivers. The 12-hour battery reduces the need to charge more often and using the customer vLoc3 holder the Garmin GLO™ is perfect for locating.

Kit - Garmin GLO™ & Holder - vLoc3 (2.219.01.00073)

Holder - vLoc3 series (2.219.01.00071)

Accessories Brochure

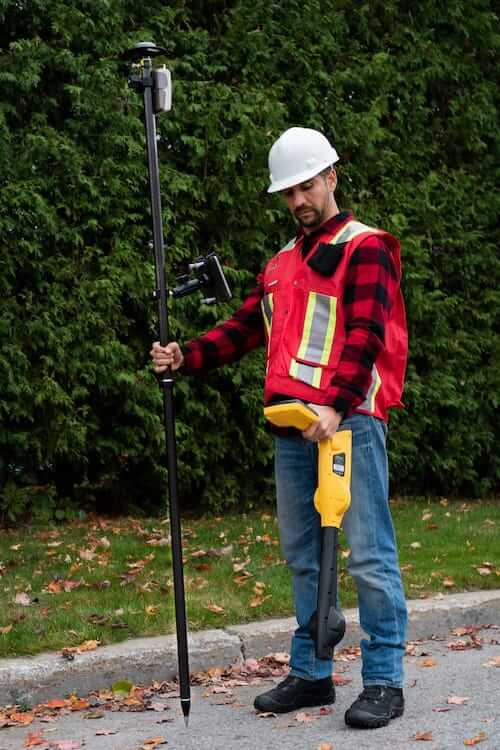

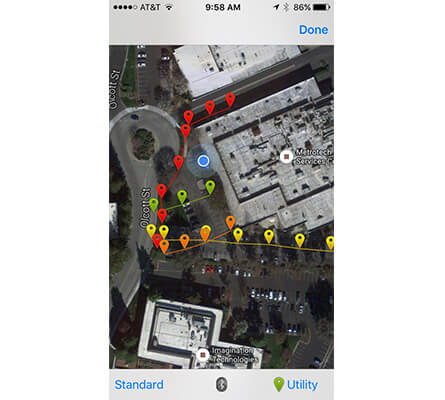

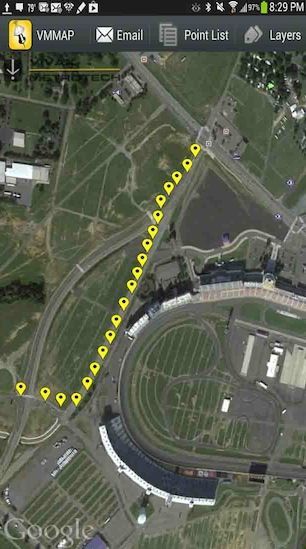

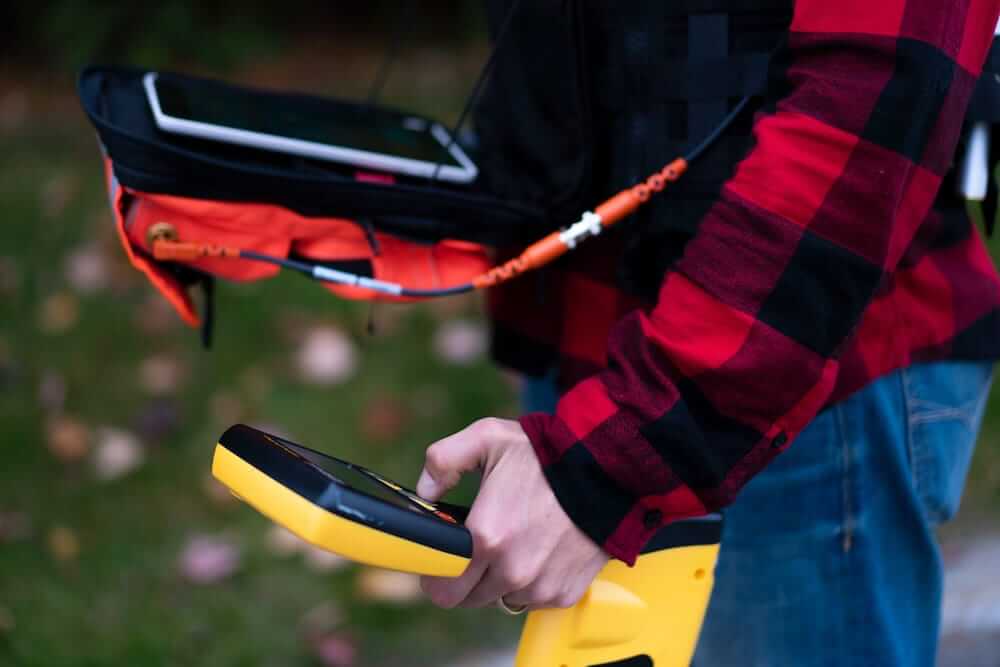

VM-MAP App

The VMMAP mobile mapping app from Vivax-Metrotech provides an affordable real-time mapping solution for GPS mapping of buried utilities.

This solution will generate maps in real time giving the user a visual indication on the smartphone and confidence that the data is accurate. GPS is provided by the smartphone or via an external GPS receiver providing seamlessly whatever level of accuracy you need for the map. The app provides additional data to be entered such as notes or job site pictures.

The VMMAP application is compatible with both iOS and Android devices and can be downloaded for FREE on the Apple Store or GooglePlay.

Instant mapping of buried and above ground utilities
Quickly create and email files; CSV, KLM, TXT or XLS formats
Easy integration into GIS software
Detailed history points to display and visualize the work being done
Detailed information on location points (current, mode, frequency, depth and GPS coordinates)
