EX-TEC PM 580 Portable Gas Detector for detecting, measuring and warning

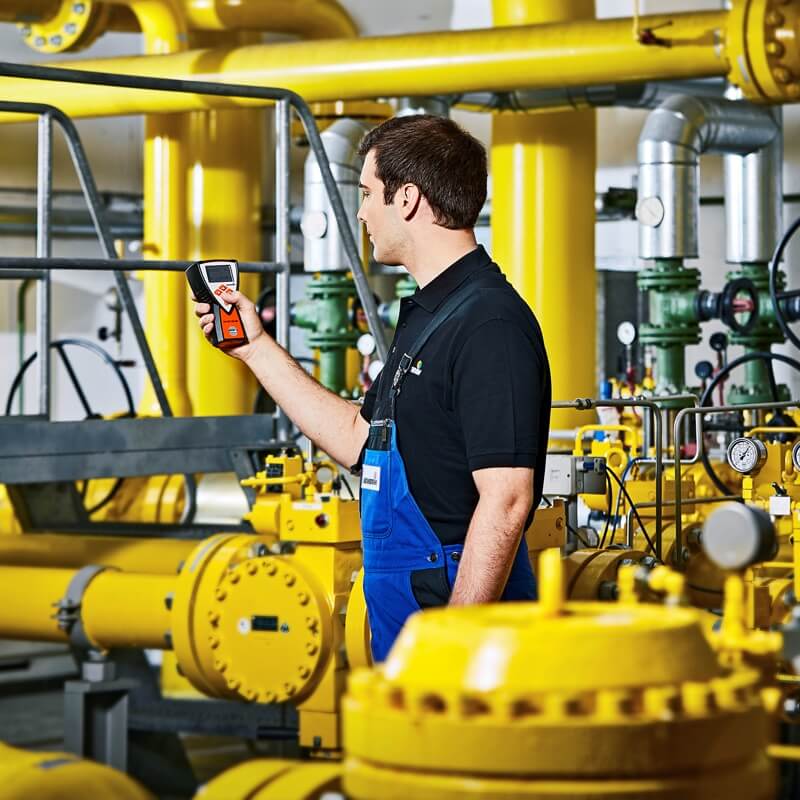

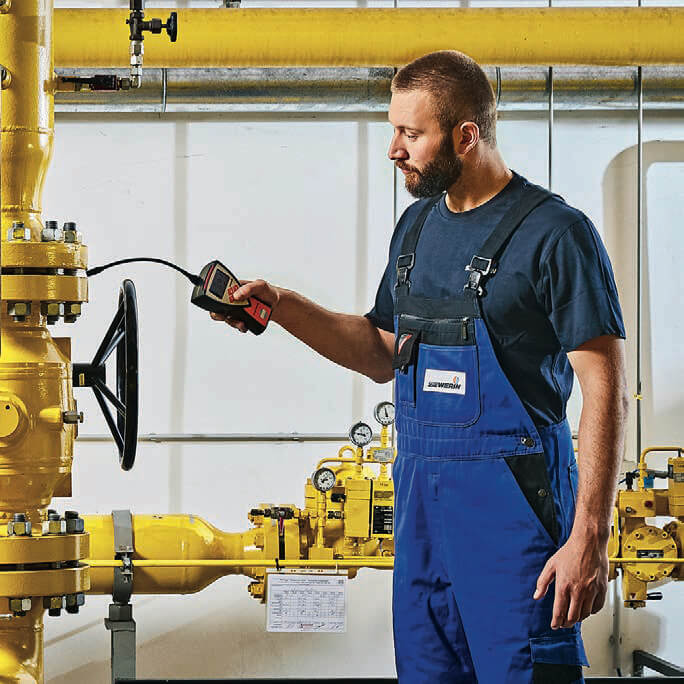

The EX-TEC PM 580 is the perfect mobile gas measuring instrument. The PM 580 locates leaks in gas pipelines, assesses the risk of explosion, and determines whether toxic gasses are within the occupational exposure limits (OEL). In the structure application, the EX-TEC PM 580 displays the carbon monoxide (CO) concentration in the room air and triggers an audible and visual alarm if the values are too high. Toxic carbon monoxide (CO) is produced by combustion equipment, such as heating systems, due to insufficient ventilation and poses a risk to humans.

The EX-TEC PM 580 gas measuring and gas warning devices detect five different gasses when appropriately fitted. Due to its modular design, users can order the perfect instrument for the application.

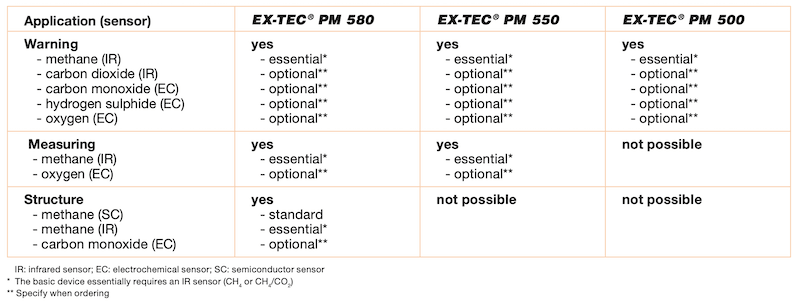

Warning
methane-CH₄ (IR)
carbon dioxide CO₂ (IR)**
carbon monoxide CO (EC)**
Hydrogen sulphide H₂S (EC)**
oxygen O₂ (EC)**

Measuring
methane-CH₄ (IR)
oxygen O₂ (EC)**

Structure
methane-CH₄ (SC)
methane-CH₄ (IR)
carbon monoxide CO (EC)**

**Optional

IR - infrared sensor
EC - electrochemical sensor
SC - semiconductor sensor

There are hidden images / Tidy mode active.

YouTube Page

Features

Users can easily read 2.5" LCD in every environment - Its vivid, high-contrast, razor-sharp with a backlight
Very user-friendly - simple navigation using four keys and clear menu structure for all applications

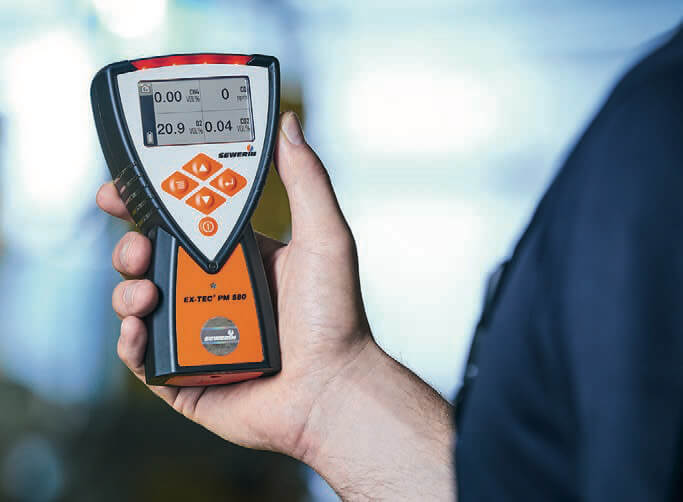

One-hand operation - suitable for right and left-handed use
Ergonomic - non-slip housing fits security in the hand
Transparent filter door - east to see and replace the filter
Detects up to (5) five different gases when adequately fitted
Audible and visual pre-alarm and main alarm when gas concentration is dangerous
Flexible power supply - AA-size rechargeable or alkaline batteries

Specifications

Dimensions (W x D x H): approx. 3.66" x 1.85" x 6.5"
Weight: depends on sensors, approx. 1.1 lbs.
Protection rating: IP65
Power supply: 3 AA alkaline (or NiMH 2500 mAh rechargeable)
Operation time: at 77º F
EX-TEC PM 580 / 550 / 500: Warning application: 16 hrs.
EX-TEC PM 580 / 550: Measuring application: 11 hrs.
EX-TEC PM 580: Structure application: 8 hrs.
These times are based on no alarms being triggered during operation.
Battery charging time: approx. 5 his (full charge) at 2400 mAh
Charging voltage: 12 VDC (max. 300mA)
Operating temperature: -4º to 68ºF w/o EC sensor
Storage temperature: -4º to 140ºF w/o EC sensor
-4º to 68ºF w/ EC sensor
Atmospheric pressure: 700 - 1200 hPa
Permissible relative humidity: 5-90% RH, non-condensing
Display: monochromatic TFT display, 380 x 224 pixels, size 56 x 33mm
Pump capacity: vacuum: > 150 mbar / volume flow: > 10 l/h

Accessories

All EX-TEC PM 580/550/500 gas measuring and gas warning devices include a handy short probe. Other probes are available to optimize your application.

SPE AutoFlow test set makes compulsory device inspections easier and reduces test gas consumption.

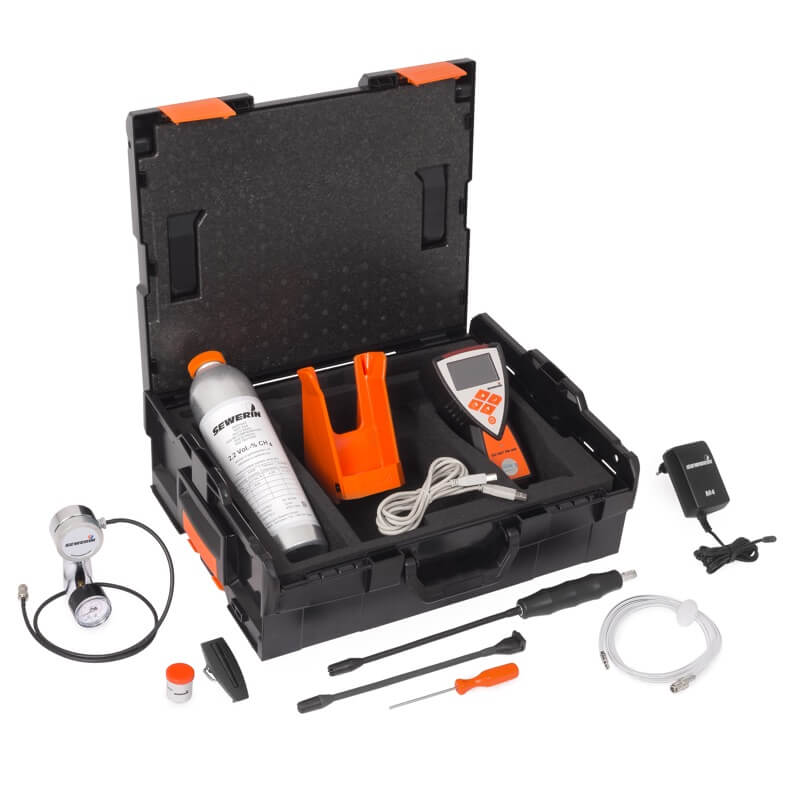

HG5 L-BOXX case provides for robust storage for devices and accessories.
Automatic Test Station (ATS 501/503) provides an accurate and easy device inspection method for measuring and calibration adjustments. Powerful GasCom software offers a reading of stored records and device configuration.
