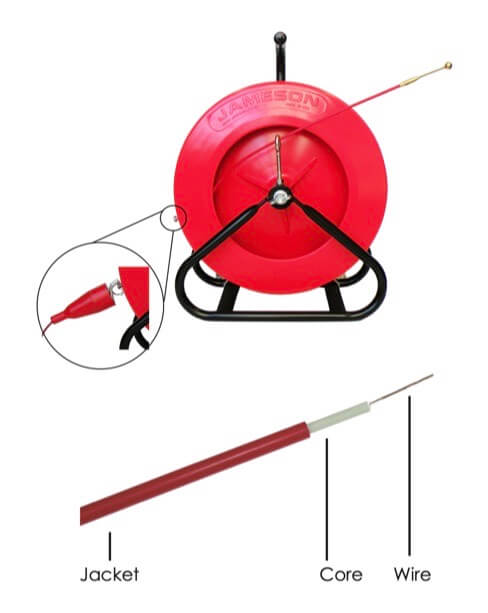

The Duct Hunter is a series of locatable duct Rodders from Jameson. Every Duct Hunter rodder is made with a continuous fiberglass duct rodder with a copper wire embedded in the rod core. Users can connect a pipe & cable locator transmitter to the reel and transmit a locatable signal along the entire length of the rod; allowing users to locate previously non-locatable pipe or duct up to 10' deep, using a pipe & cable receiver. Duct Hunter locatable Rodders are perfect to use for locating underground PVC, PE, concrete, clay , or tile pipe.

My Image

  • Locate and mark non-metallic pipe to depths as deep as 10'
  • Locate sewer laterals to confirm no cross bore has occurred
  • Locate ductile iron, plastic, tile, or concrete pipe

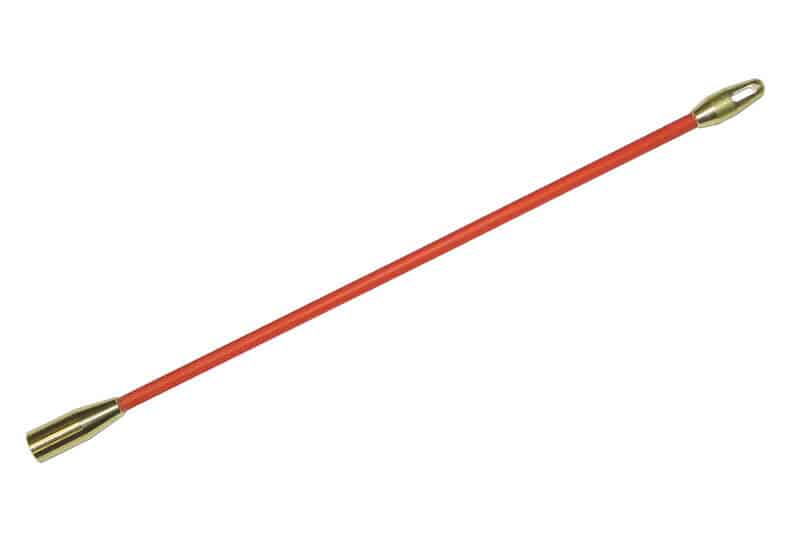

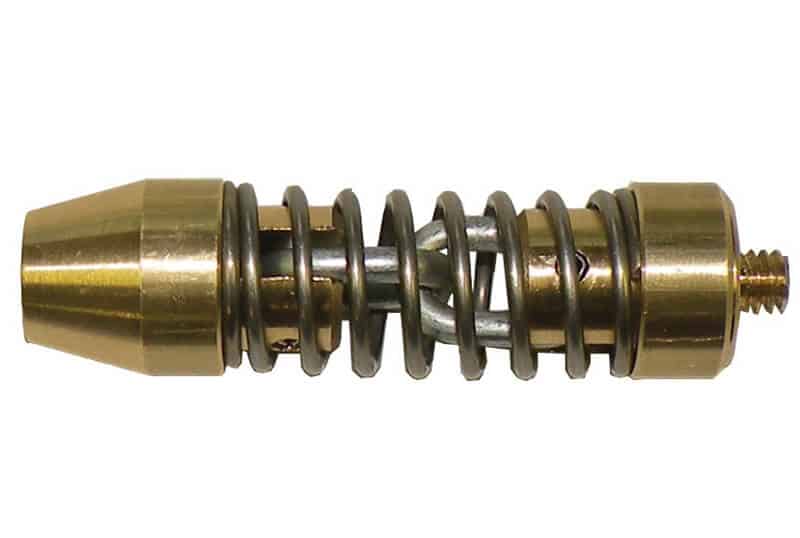

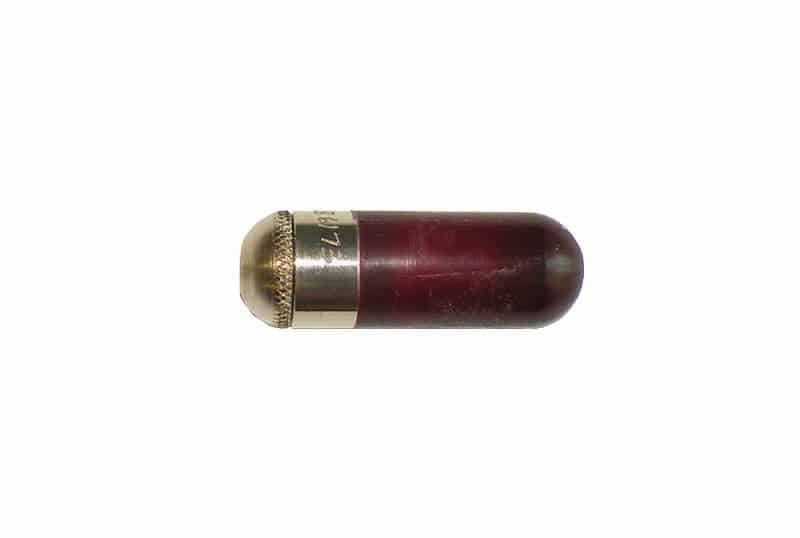

  • Attach sonde, roller guide, or pulling eye to rod's end ferrule
  • Works with any pipe & cable locator

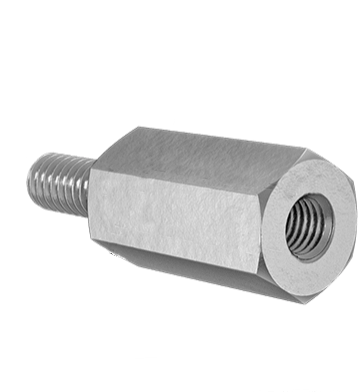

  • Sonde adapters available to fit most sonde threads
  • Excellent bend strength

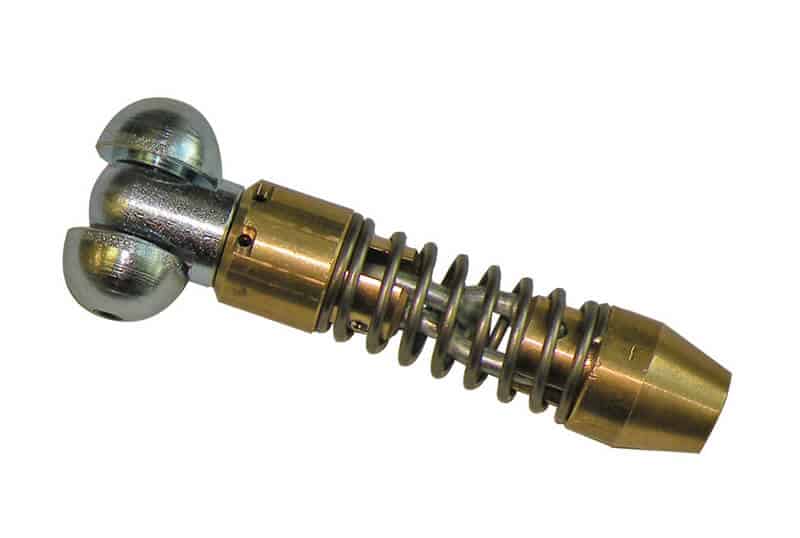

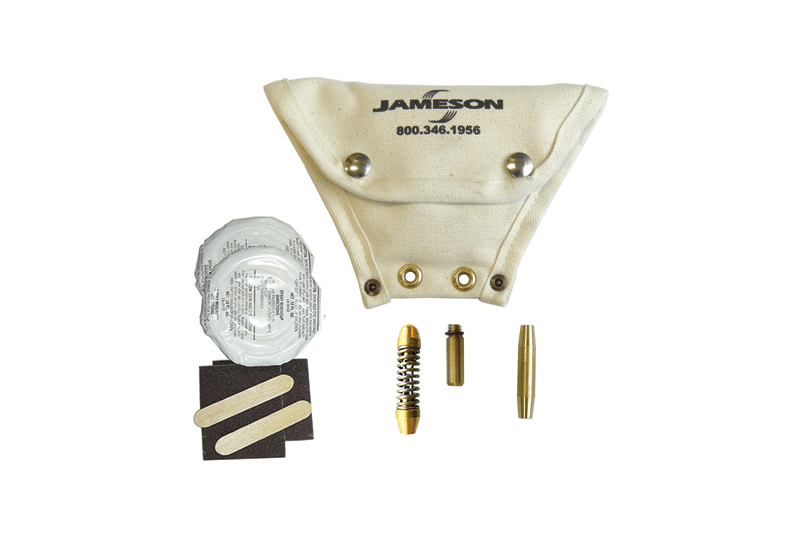

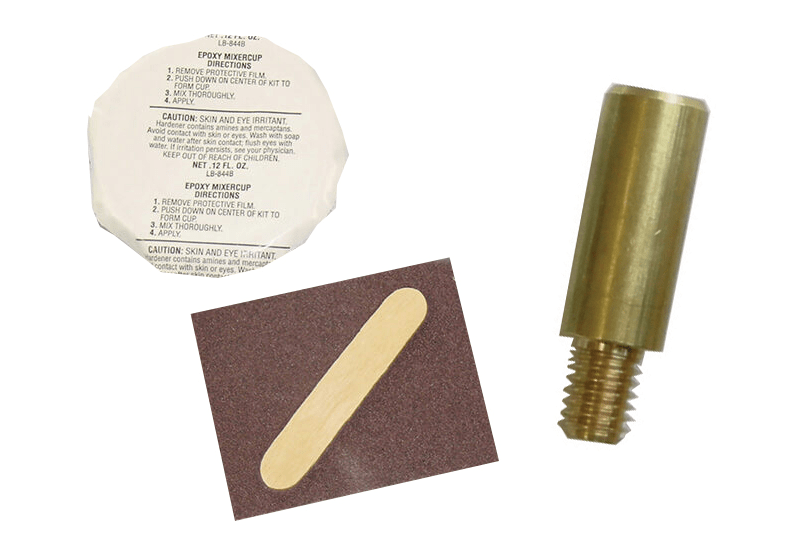

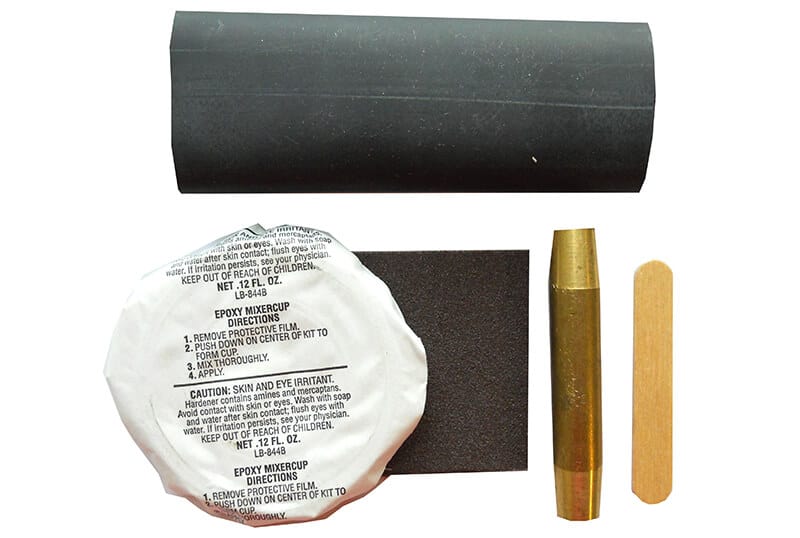

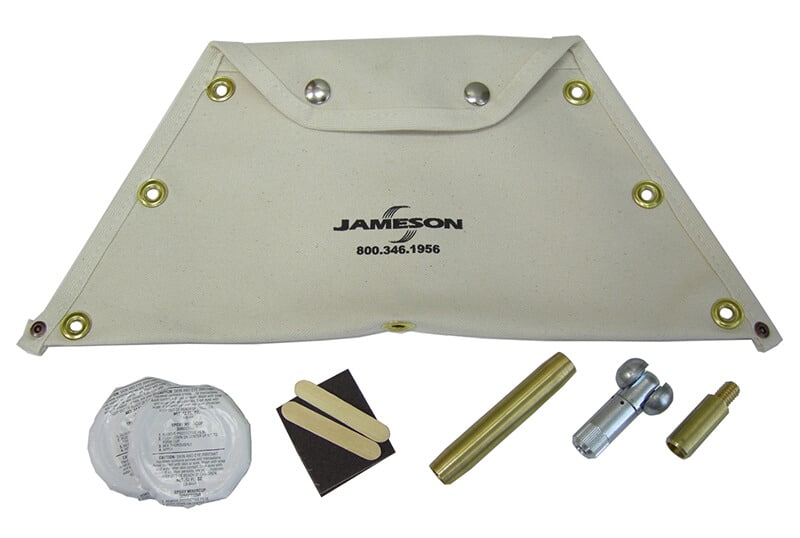

  • All Rodders include pulling eye or roller guide, repair kit and accessory kit

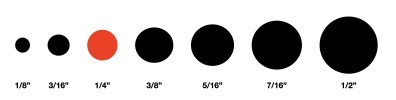

  • All Rodders are 1/4" and larger and marked in 5' increments (1m metric marked available)

My Image

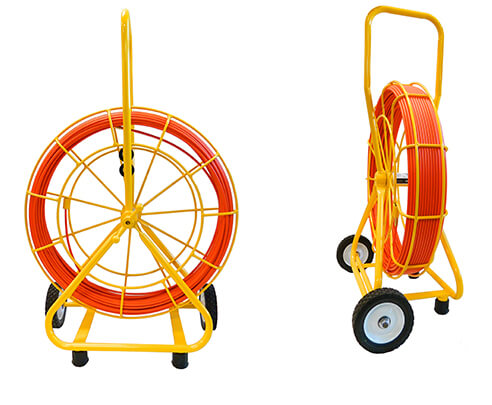

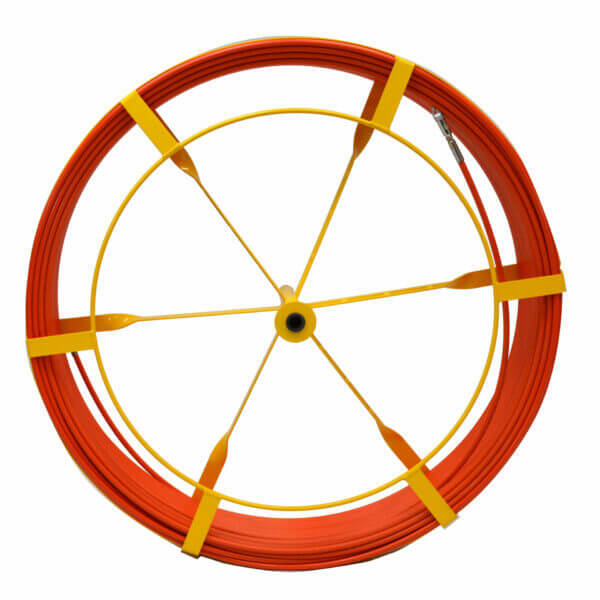

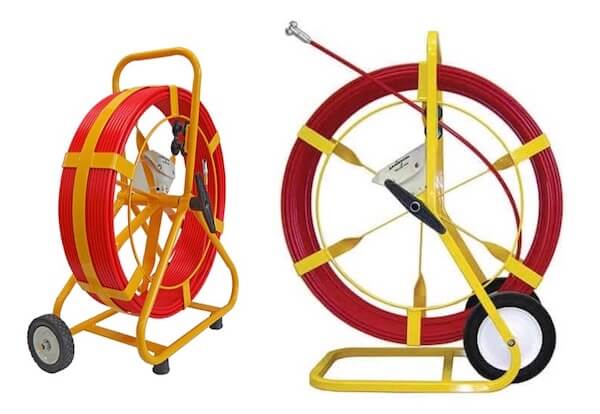

Duct Hunter- 7/16" Diameter Rod - For Conduit 4" or Larger

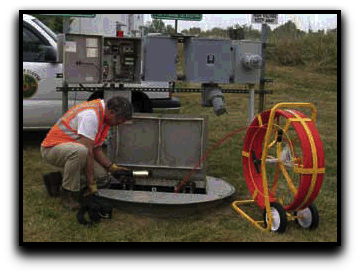

Heavy duty non-conductive locatable rodder for manhole-to-manhole work or long-run cable pulls. The 7/16" diameter rod is the stiffest rod for the largest pipes and longest runs. All terrain wheels are available.

My Image

  • Drag brake and safety feed roller to control payout
  • 9" Bending Radius
  • 800 lbs. Pull/Tensile Strength
  • Male end ferule : 3/8"-16 thread pitch

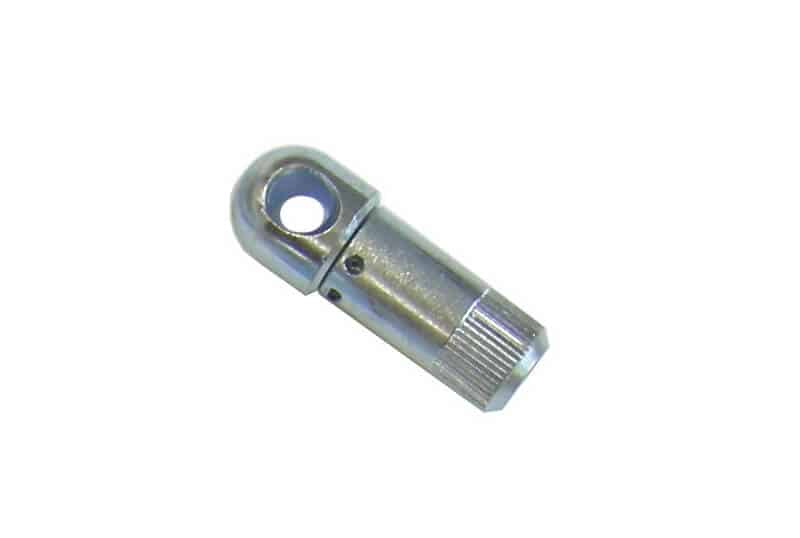

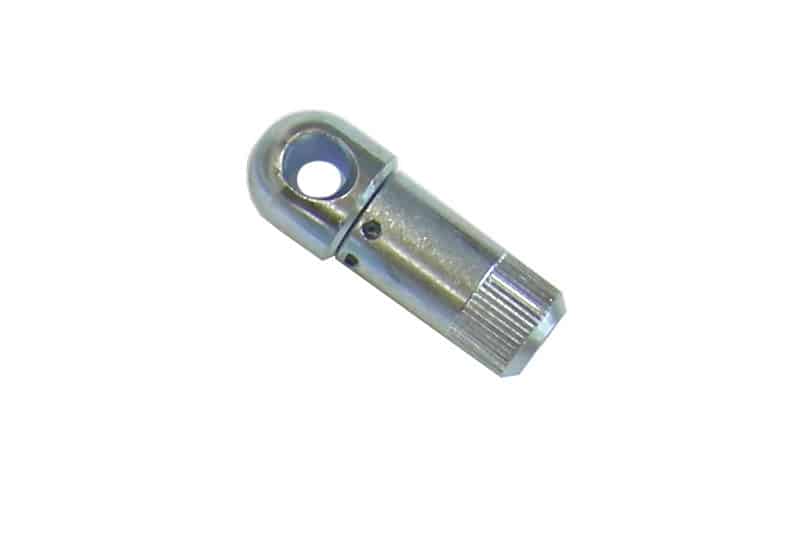

  • Includes End Ferrule and Pulling Eye

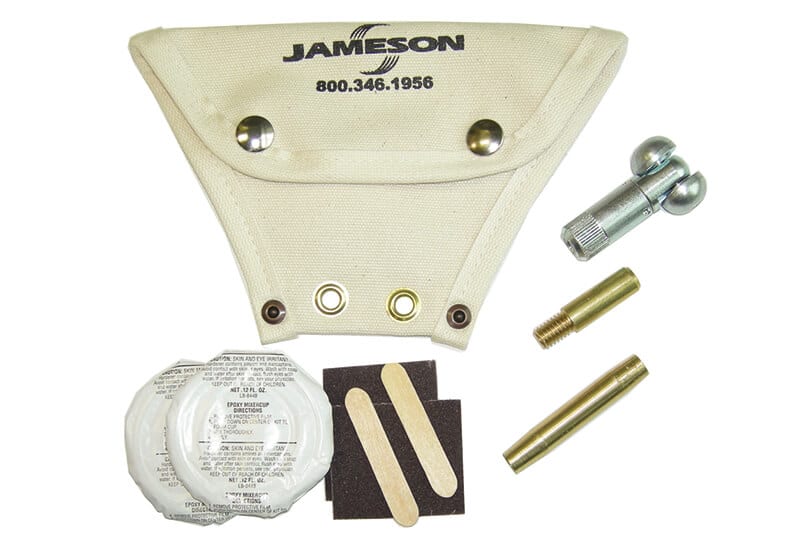

  • Accessory Kit included
  • Dimensions: 48"H x 44"L x 21"W
  • Weight: 44 lbs. to 75.8 lbs. (depending on length)

Part NumberDiameterLength (weight)
13-716-300M7/16"300'
13-716-400M7/16"400'
13-716-500M7/16"500'
13-716-600M7/16"600'
13-716-800M7/16"800'
13-716-1000M7/16"1,000'
My Image
Rod Diameter7/16" OD
Lengths300' to 1,000'
For Conduit Use4"+
Size48" H x 44" L x 21" W
Weight80 lbs. (300')
90 lbs. (400')
100 lbs. (500')
115 lbs. (600')
145 lbs. (800')
164 lbs. (1,000')
Male End Ferrule Thread Size3/16"-16
Bend Radius9"
MarkedRod is marked every 5-foot
UsageManhole to manhole or long cable runs.
