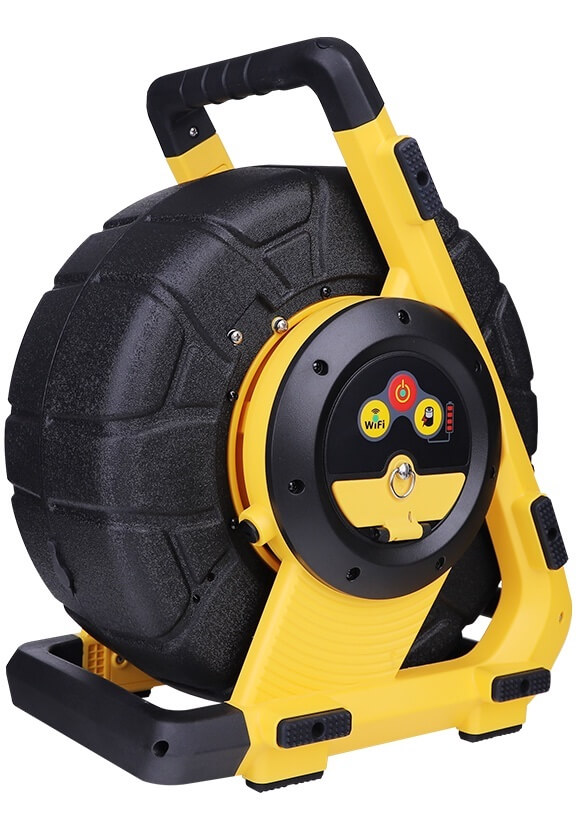

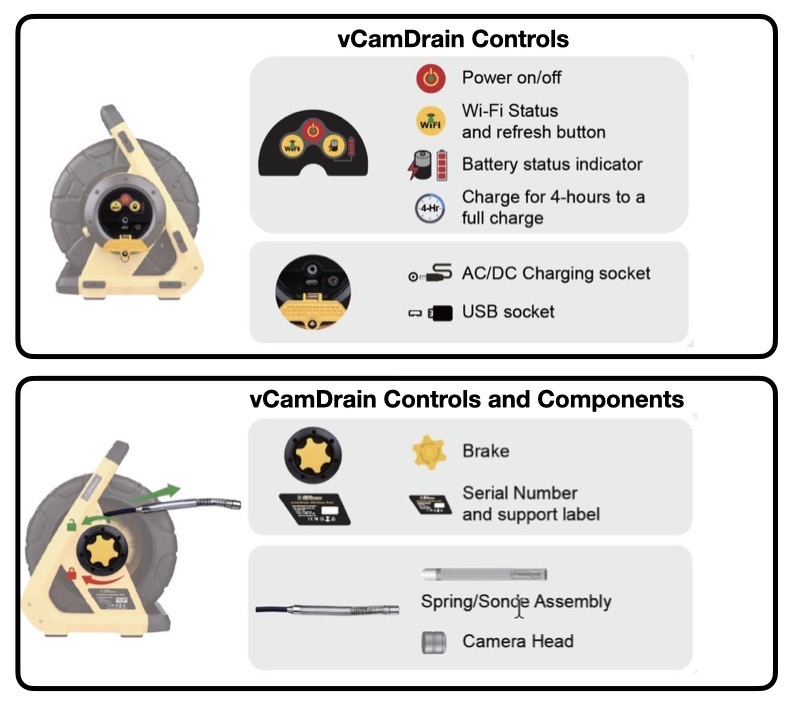

The vCamDrain inspection camera system is a wireless Wi-Fi reel controlled by an iOS or Android app. The vCam Mobile Controller (VMC) app manages all the reel functions, including the camera head LEDs and the 512Hz/640Hz/33kHz locating sonde, and the distance counter. In addition, the VMC app displays the reel's Wi-Fi status, battery level, and even charging status. The system's Li-Ion battery is capable of up to 10-hour operation on a full charge.

The

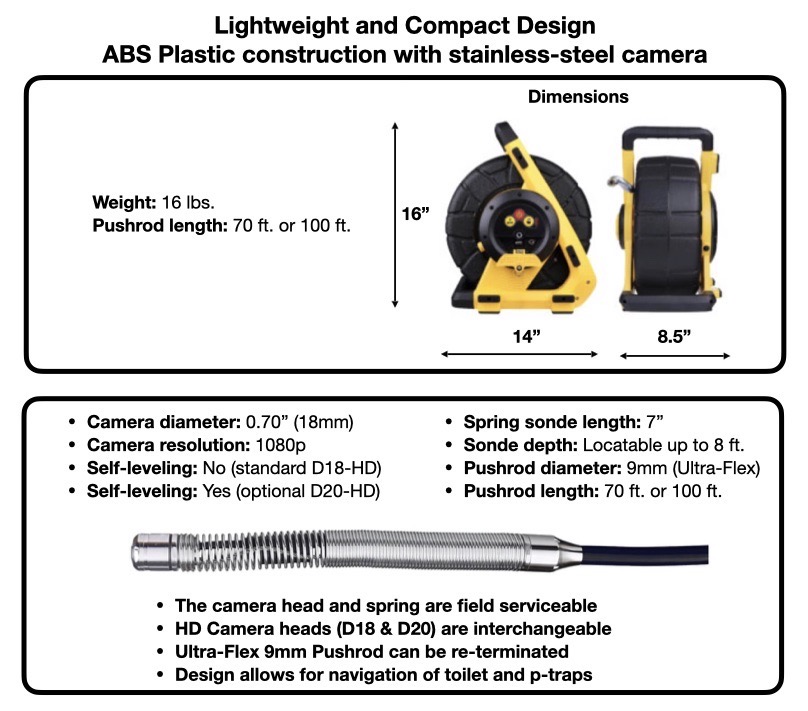

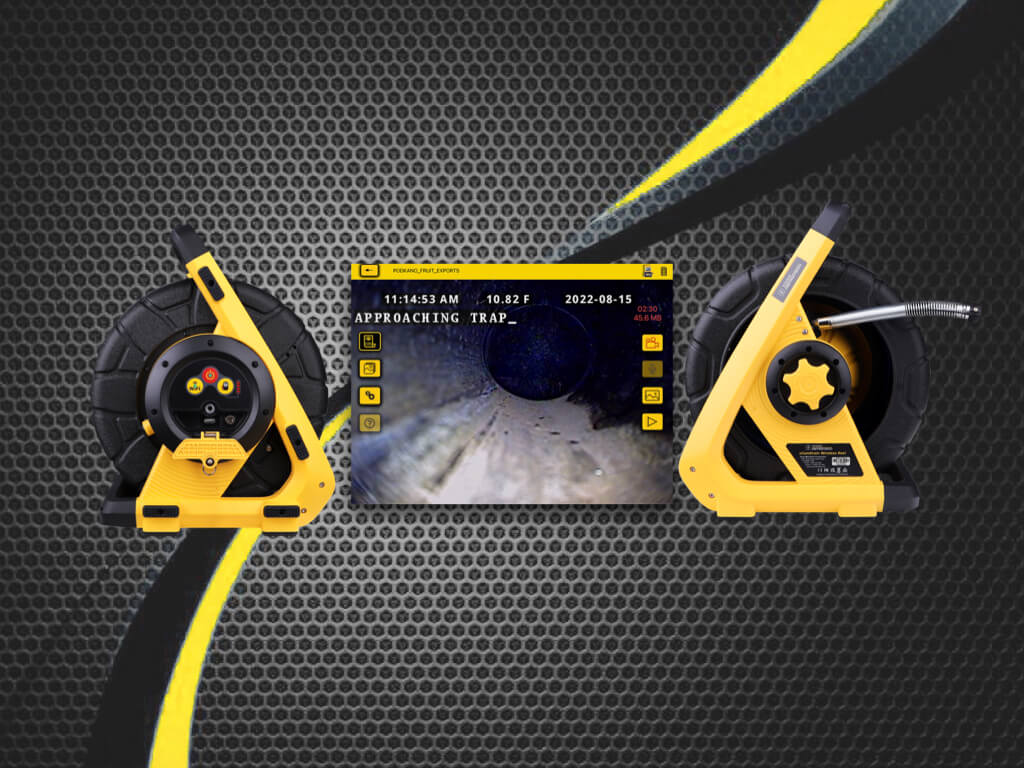

vCamDrain features robust stainless-steel HD cameras with a sapphire lens, and ultra-bright LEDs, producing a crisp, clear image of the pipe interior. The 9mm ultra-flex pushrod provides flexibility and push strength, and its unique smooth exterior allows it to navigate multiple bends, tighter turns, P-traps, and toilet traps. Both 70' or 100' length is available. The vCamDrain is perfect for drain lines as small as 1.5" in diameter. Two camera heads available are 18mm fixed and 20mm self-leveling. All camera, spring, and sonde assemblies are field changeable.

Stacks Image 38990
Stacks Image 39161
Stacks Image 39102
Stacks Image 38992
Stacks Image 39116
Stacks Image 38994
Stacks Image 39094
Stacks Image 39098
Stacks Image 39096
Stacks Image 39000
Stacks Image 39112
Stacks Image 39100
There are hidden images / Tidy mode active.
My Image

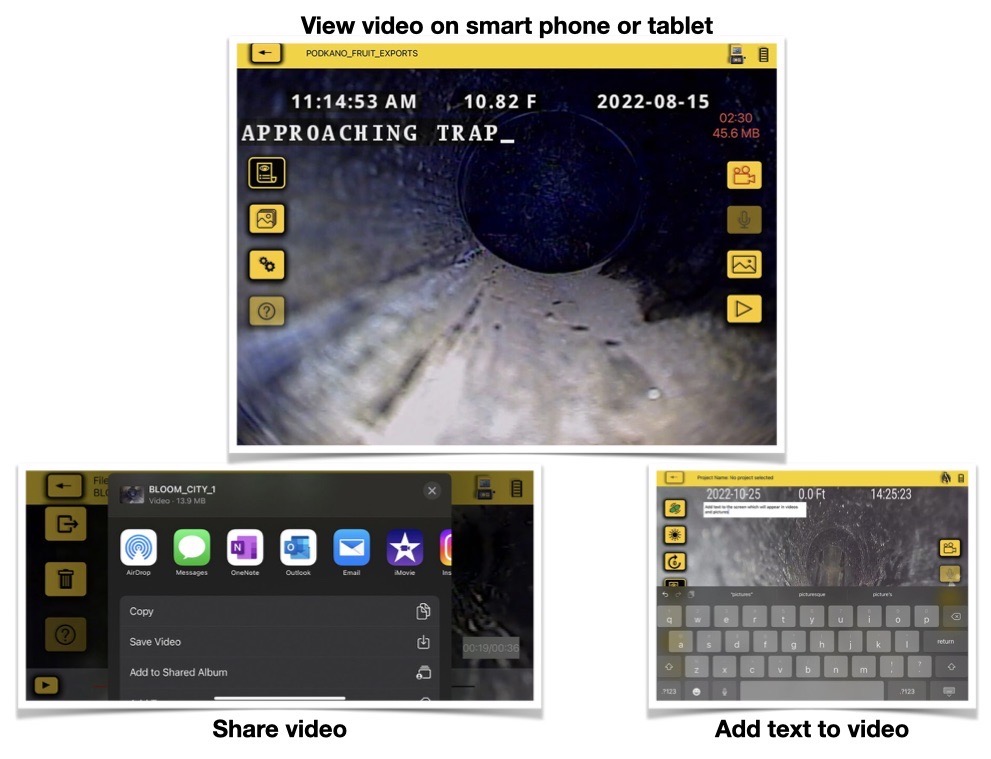

App Features:

  • Displays elapse video time and file size
  • Videos can be organized into "Projects"
  • Files can be shared via popular cloud-storage services
  • Control On/Off of locating sonde
  • Control "Ultra-Bright" Camera LED's
  • Reset Distance Counter
  • Add Text to video
  • Add Audio notes to video
  • Control 1080p HD video recording (MP4)
  • Capture pictures during video (JPG)
  • Records to VMC App, or USB (128GB), or both simultaneously

My Image

Features:

  • Ruggedized Construction - High Impact ABS
  • 18mm (0.7") fixed HD 1080p (standard)
  • Stainless-steel camera housing
  • Sapphire camera lens
  • 70' or 100' length
  • Lightweight - only 16 lbs.
  • Includes 512Hz, 640Hz and 33kHz high-powered sonde
  • Wi-Fi range up to 30'
  • Power - Li-Ion battery (up to 10 hrs) or use power cord
  • Perfect for p-traps and most toilet traps

My Image
My Image
My Image

My Image
My Image

Optional:

  • 20mm (0.78") HD 1080p self-leveling

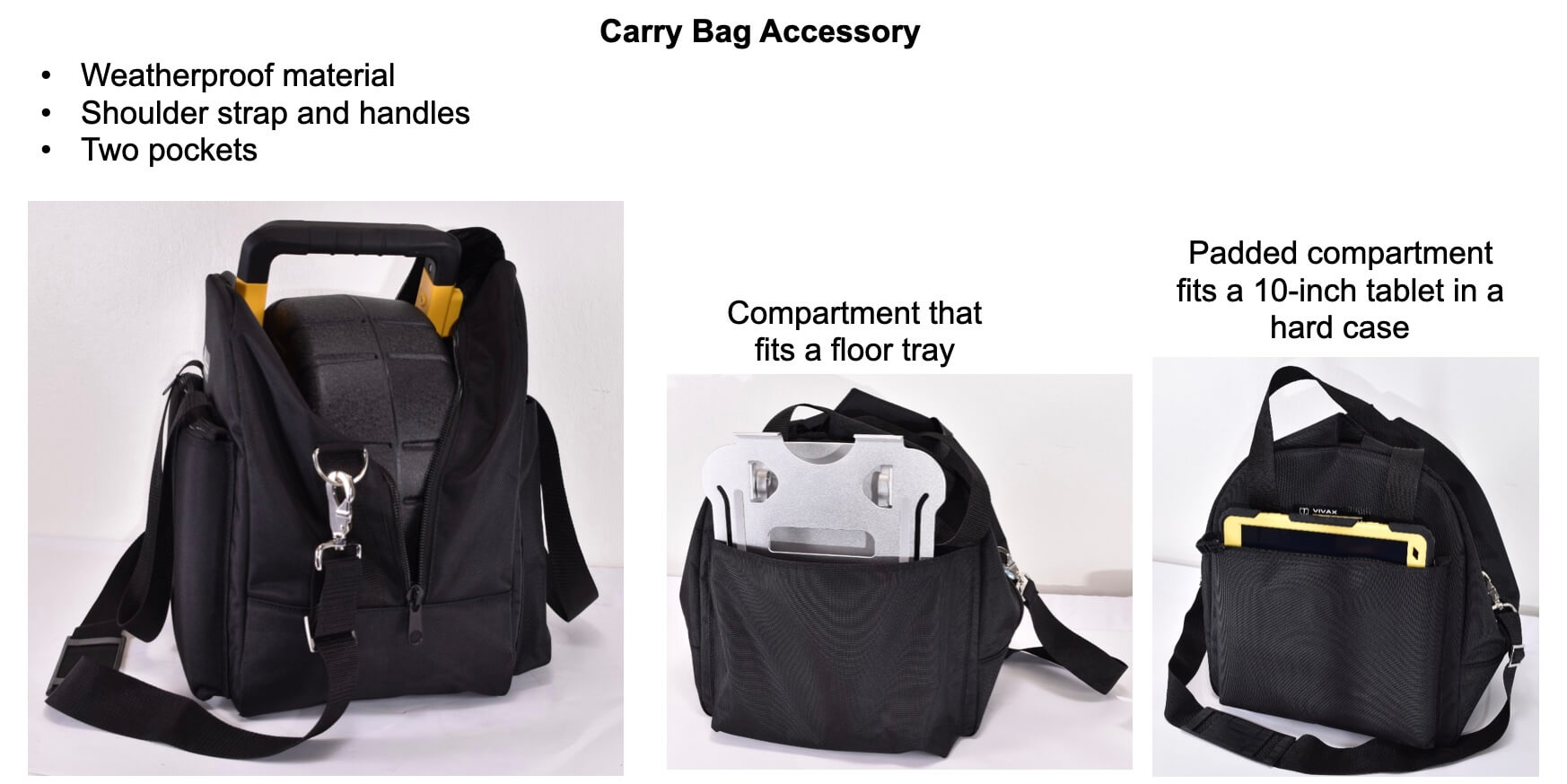

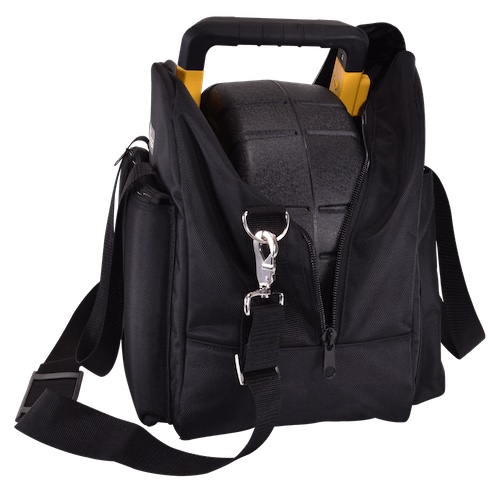

  • Reel Carry Bag

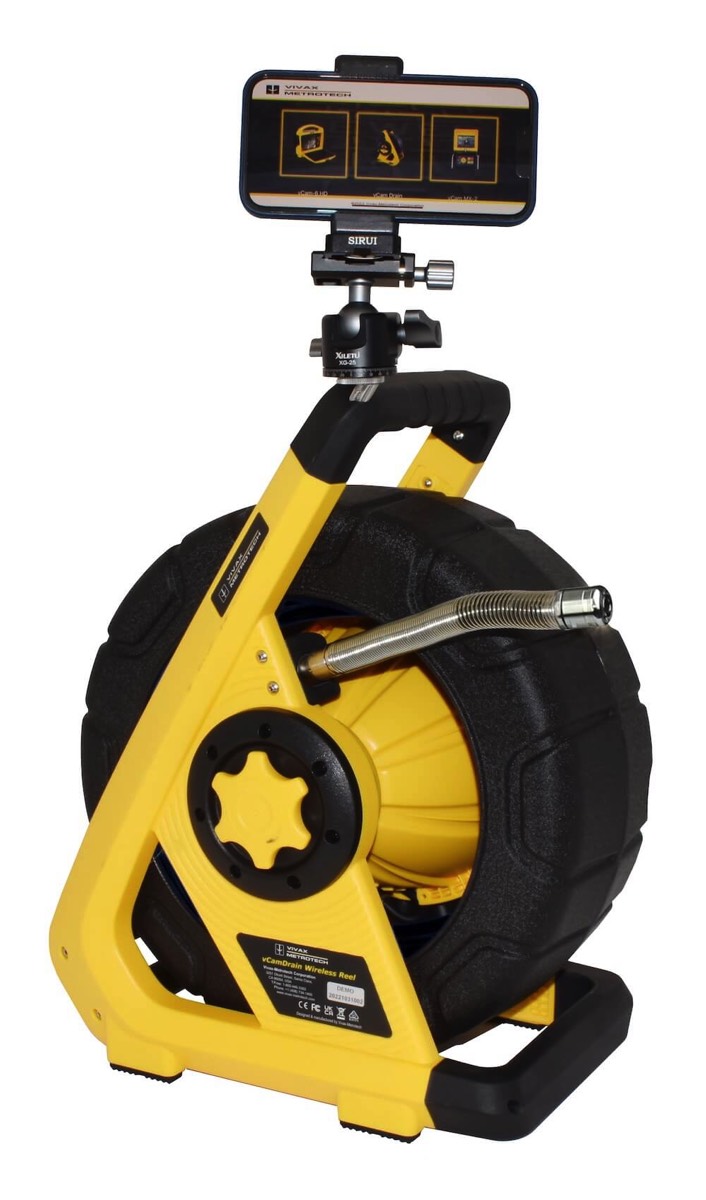

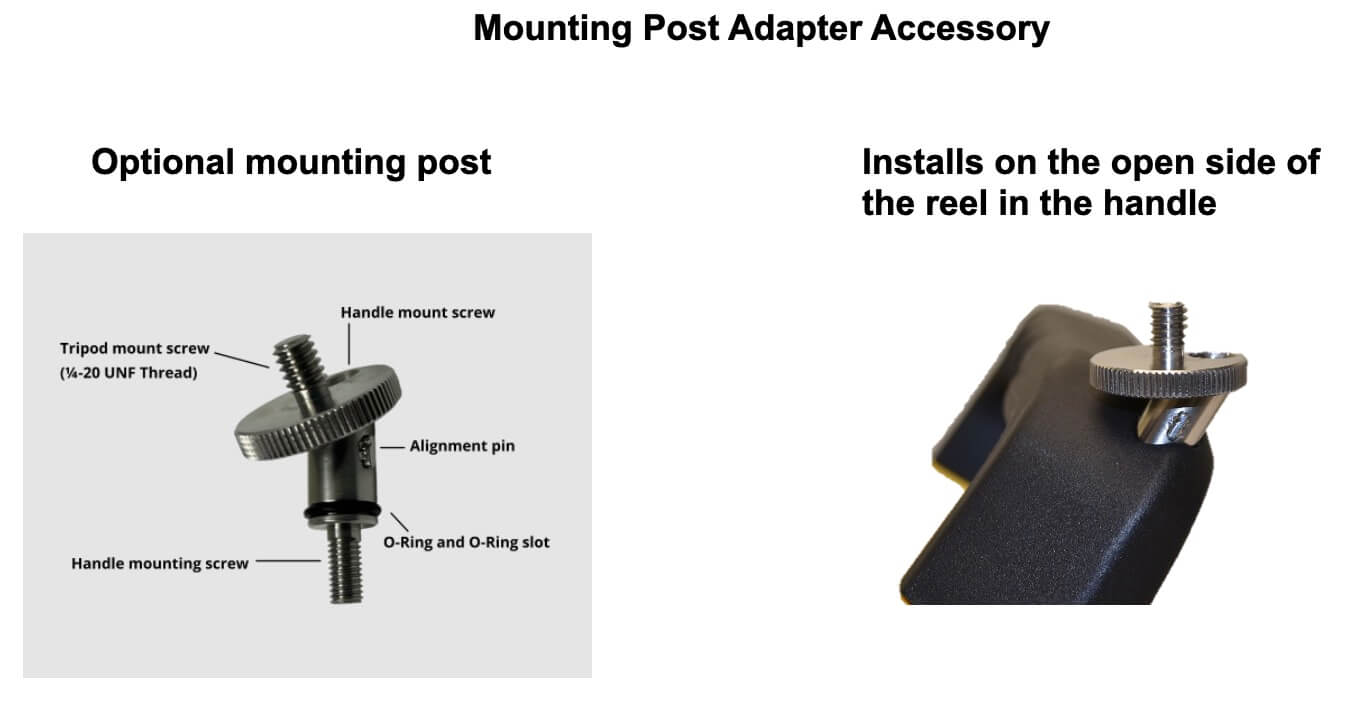

  • Tablet or phone holder mount
  • Phone mount kit
  • Sonde locator


Videos


Stacks Image 39023

Vivax-Metrotech vCamDrain Wireless Video Inspection
